KÜ Õismäe tee 150 lõpparuanne

1

Anu Vaikjärv

From: Rein Funk <[email protected]> Sent: esmaspäev, 5. august 2024 11:31 To: Anu Vaikjärv Subject: Re: FW: RIIGIEELARVELISE TOETUSE SAAJAD Attachments: Kortermajade keldrikorruste varjumiseks kohandamise projekti aruanne_1.asice

Follow Up Flag: Follow up Flag Status: Flagged

TÄHELEPANU! Tegemist on väljastpoolt asutust saabunud kirjaga. Tundmatu saatja korral palume linke ja faile mitte avada!

Tere, saadan varjumiskoha dokumendid, Õismäe tee 150 Lugupidamisega, Rein Funk KÜ Õismäe tee 150 juhatuse liige [email protected] 550 3497 Kontakt Anu Vaikjärv (<[email protected]>) kirjutas kuupäeval N, 13. juuni 2024 kell 07:39:

Tere!

Palun edastage kõik nõutavad dokumendid e-mailile [email protected] või [email protected] .

Viibin puhkusel alates 17.06-04.07.2024, võtan Teiega ühendust alates 08.07.2024.

Lugupidamisega

Anu Vaikjärv

ohutusjärelevalve büroo

varjumiskohtade nõunik

mob: +372 5330 2998

[email protected]

2

PÄÄSTEAMET

Erika 3 | 10416 Tallinn

rescue.ee

ohutusportaal.paasteamet.ee

From: Rein Funk <[email protected]> Sent: Wednesday, June 12, 2024 10:15 AM To: Kirill Nimtšuk <[email protected]> Cc: Sten-Patrick Kreek <[email protected]>; Aivar Kukk <[email protected]> Subject: Re: RIIGIEELARVELISE TOETUSE SAAJAD

TÄHELEPANU! Tegemist on väljastpoolt asutust saabunud kirjaga. Tundmatu saatja korral palume linke ja faile mitte avada!

Tere.

Õismäe tee 150 majas on ehitustööd lõpetatud.

Palun teatage, millal saate kohapealse ülevaatuse teha.

Lugupidamisega

Rein Funk

KÜ Õismäe tee 150 juhatuse liige

[email protected]

550 3497

3

Kontakt Kirill Nimtšuk (<[email protected]>) kirjutas kuupäeval E, 5. veebruar 2024 kell 13:46:

Tere

Tuletan Teile meelde, et toetuse raha kasutamise kohta vajalik esitada / peab olema esitatud arve / tšekk. Mingil muul moel ei ole võimalik tõendada raha sihipärast kasutamist (varjumiskoha korda tegemine)

Samuti võite kirjutada kuidas teil läheb: mis staadiumis tööde teostamine on? Kui on vaja, siis võin Teid külastada ning saame objektil arutada / üle vaadata tehtud tööd.

Lugupidamisega

Kirill Nimtšuk

Ohutusjärelevalve büroo

varjumiskohtade nõunik

mob: +372 5193 2946

[email protected]

PÄÄSTEAMET

Erika 3 | 10416 Tallinn

rescue.ee

4

ohutusportaal.paasteamet.ee

Hankija: Tallinn, Õismäe tee 150 korteriühistu

TEHTUD TÖÖDE AKT 1

Hanke nimetus: KELDRIRUUMIDE VARJUMISRUUMIDEKS KOHANDAMINE kuupäev 11.03.2024

Objekti aadress: Õismäe tee 150, Tallinn, Harjumaa

EHITUSFIRMA: OMA Fassaad OÜ

Kulu kirjeldus Mõõtühik Tööde

maht

Ühiku hind

ilma km-ta

Maksumus kokku

ilma km-ta

akt 1 osakaal

% akt 1 summa

Osakaal

kokku % Lepingu jääk

1 VÄLISRAJATISED

11 Ettevalmistus ja lammutus

112 Hoonete ja rajatiste lammutamine

Seinte kattekihtide eemaldamine (metall

kronsteinid). m3 0,5 530,00 € 265,00 € 100% 265,00 € 100% - €

Ol. Olevatest seintest avade sisse

lõikamine (2 ava) m3 0,7 2 120,00 € 1 484,00 € 100% 1 484,00 € 100% - €

Olemasoleva elektri installatsiooni

eemaldamine ja utiliseerimine obj. 1 265,00 € 265,00 € 50% 132,50 € 50% 132,50 €

117 Hoonete ja rajatiste lammutamine

Vanade uste demonteerimine tk 1 106,00 € 106,00 € 100% 106,00 € 100% - €

118 Raadamis- ja lammutusjäätmete vedu ja

utiliseerimine

Lammutusjäätmete transport ja

utiliseerimine. (ehitustööde jäätmed) m3 2,5 212,00 € 530,00 € 100% 530,00 € 100% - €

2 ALUSED JA VUNDAMENDID

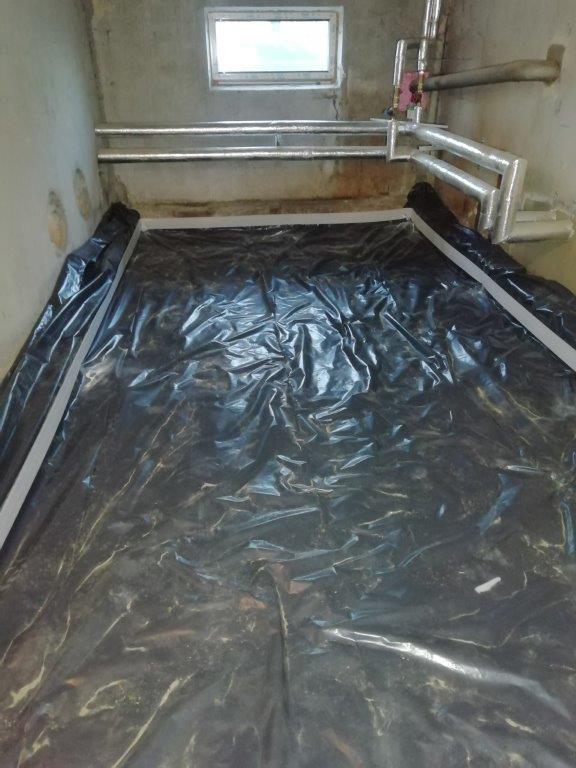

23 Aluspõrandad

231 Liiv- ja killustikalused

Killustikalused (4-8mm) ja tihendamine m3 8 106,00 € 848,00 € 100% 848,00 € 100% - €

232 Betoontarindid

Põrandate valu C25/30, sünteetilise

kiuga (ei vaja lisaarmeerimist) 100mm m3 18 1 060,00 € 19 080,00 € 100% 19 080,00 € 100% - €

237 Vuugid

Deformatsiooni vuukide lõikus ja

tihendamine (põrandavalu liited eri

ruumide vahel)

jm 18 5,30 € 95,40 € 100% 95,40 € 100% - €

27 Eritarindid

3 KANDETARINDID

31 Metalltarindid

311 Metallkarkass

Fibosilllus 150x1490 mm tk 1 159,00 € 159,00 € 100% 159,00 € 100% - €

32 Kandvad ja mittekandvad sise- ja

välisseinad

322

Monteeritavad lae kande

puitkonstruktsioonid (toestus talad ja

postid) hankimine ja mõõtu lõikamine

Postid (puit 200x200mm) hankimine,

võõpamine (B-s1, d0) ja mõõtu

lõikamine ning obj. ladustamine

jm. 76 37,10 € 2 819,60 € 0% - € 0% 2 819,60 €

Talad (puit 250x200mm) hankimine,

võõpamine (B-s1, d0) ja mõõtu lõikamine

ning obj. ladustamine

jm. 40 47,70 € 1 908,00 € 0% - € 0% 1 908,00 €

Toestustalade ja postide asukohtade

markeerimistööd obj. 1 407,04 € 407,04 € 0% - € 0% 407,04 €

Talade kinnitusvahendite komplekt

(Nurgik tugevdatud 140x140x90x2,5mm

1 tk ja betoonikruvi 75*80mm 1 tk) koos

paigaldusega lakke

kmpl 64 10,60 € 678,40 € 0% - € 0% 678,40 €

Keermelatt 10mm, kiirkinnituseks jm 15 15,90 € 238,50 € 0% - € 0% 238,50 €

Avade kinniladumine (fibo 150mm) m2 5 106,00 € 530,00 € 100% 530,00 € 100% - €

Vaheseinte ladumine (Fibo 150mm) m2 6 106,00 € 636,00 € 100% 636,00 € 100% - €

42 Aknad ja nende kaitse

427 PVC aknad

….............................

Akende turvakiled obj. 1 417,64 € 417,64 € 0% - € 0% 417,64 €

43 Välisuksed

431 Lukustus ja varustus

Välisukse koodlukk solenoidiga

(avamisvõimalused võti+kood+kiip,

varutoiteseade) koos paigaldusega

kmpl 2 773,80 € 1 547,60 € 0% - € 0% 1 547,60 €

Siseukse koodlukk solenoidiga

(avamisvõimalused võti+kood+kiip,

varutoiteseade) koos paigaldusega

kmpl 2 773,80 € 1 547,60 € 0% - € 0% 1 547,60 €

Koodlukk terasvarbadest võred ja/või

lükanduksed kmpl 2 530,00 € 1 060,00 € 0% - € 0% 1 060,00 €

5 RUUMITARINDID JA PINNAKATTED

51 Vaheseinad, välisseinad ja siseseinad

511 Seinte värvimine

Seinte kerge tasandus ja suuremate

aukude täited pahtliga m2 1 37,10 € 37,10 € 100% 37,10 € 100% - €

Sente krohvimine MP (paekivi) m2 1 53,00 € 53,00 € 100% 53,00 € 100% - €

Seinte värvimine kahes kihis (nt bindo

20) m2 1 18,02 € 18,02 € 0% - € 0% 18,02 €

52 Siseuksed

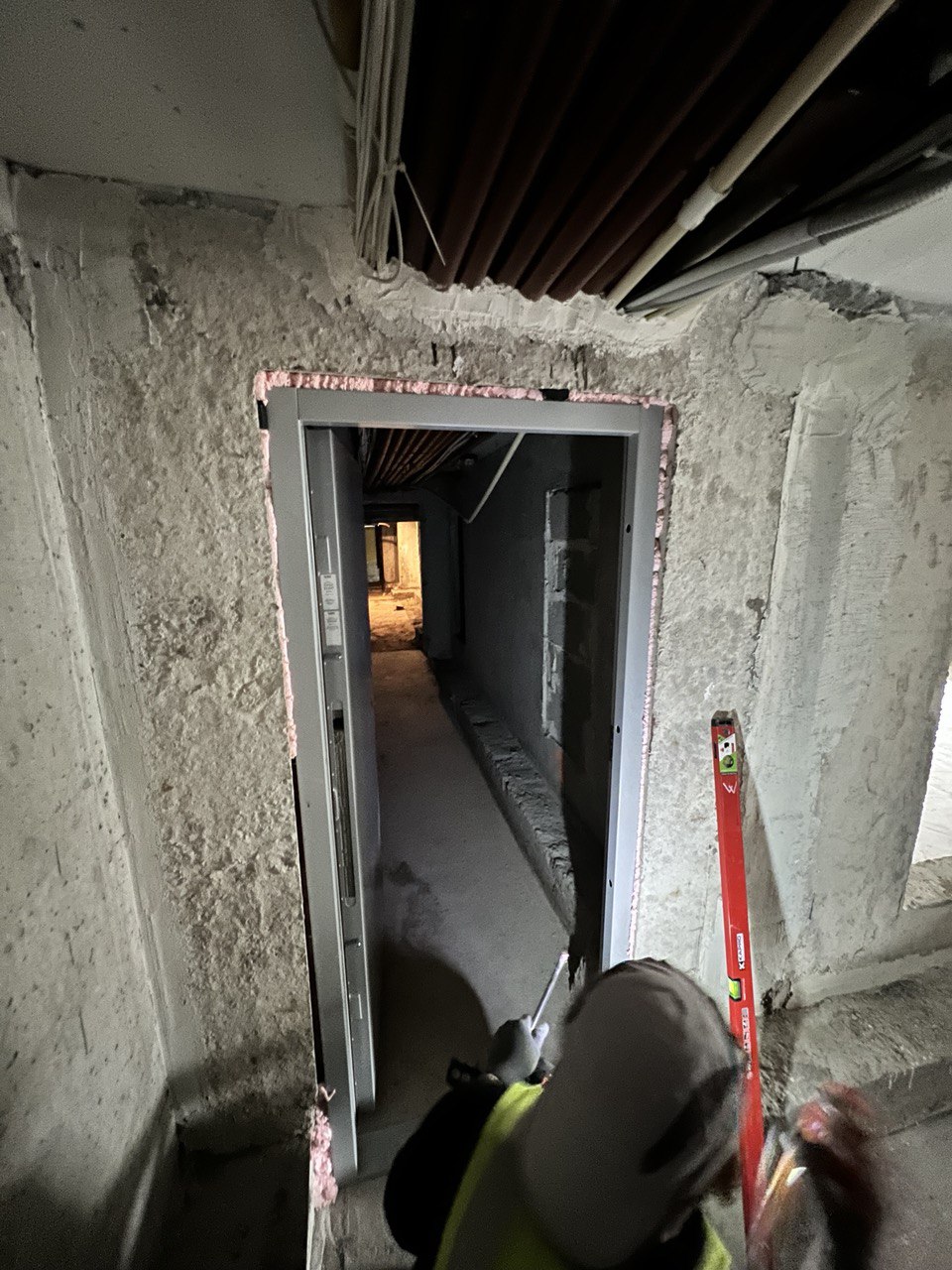

523 Terasuksed

TSU-1 (EI-60) 2100x900mm koos

lukukomplektiga, lingikomplektiga,

paigaldusega

tk 1 2 120,00 € 2 120,00 € 0% - € 0% 2 120,00 €

TSU-2 (EI-60) 2100x850mm koos

lukukomplektiga, lingikomplektiga,

paigaldusega

tk 1 2 120,00 € 2 120,00 € 0% - € 0% 2 120,00 €

TSU-3 (EI-60) 2000x850mm koos

lukukomplektiga, lingikomplektiga,

paigaldusega

tk 2 2 120,00 € 4 240,00 € 0% - € 0% 4 240,00 €

TSU-1 (EI-60) 2000x850mm ilma luku ja

lingikomplektita sinna tulevad

solenoidlukud) paigaldusega

tk 2 2 120,00 € 4 240,00 € 0% - € 0% 4 240,00 €

54 Lagede pinnakatted

541 Värvkatted

Lagede kerge tasandus ja suuremate

aukude täited pahtliga m2 128 37,10 € 4 748,80 € 100% 4 748,80 € 100% - €

Lagede värvimine kahes kihis (nt bindo

10) m2 128 18,02 € 2 306,56 € 100% 2 306,56 € 100% - €

6 SISUSTUS, INVENTAR, SEADMED,

SEADMED

64 Eriseadmed ja komplektid

KUIVKÄIMLA KOMPLEKT tk 3 159,00 € 477,00 € 0% - € 0% 477,00 €

65 Jaotus- ja erivaneseinad

651 WC , (WC eraldav kardin)

WC ruumi eraldav kardin koos

kardinapuuga ja kinnitusega tk 3 159,00 € 477,00 € 0% - € 0% 477,00 €

68 Lõõrid (loomuliku ventilatsiooni)

Ol. Olevate ventilatsiooni väljatõmbe

lõõride restkate (PVC koos sulgemisega) tk 2 31,80 € 63,60 € 0% - € 0% 63,60 €

7 TEHNOSÜSTEEMID

71 Veevarustus ja kanalisatsioon

712 Kanalisatsioon

Põrandatrappide sulgemine ja WC

ühendamine ol. Torule komp 2 53,00 € 106,00 € 0% - € 0% 106,00 €

Tuletõkke tsoonist väljuvate torude

tuletõkkemansetid (d 50-110mm) tk 8 106,00 € 848,00 € 0% - € 0% 848,00 €

72 Küte, ventilatsioon ja jahutus

724 Ventilatsiooniseadmed

V1 (ventilatsi väljatõmbeseade ) + lülitus

ja reostaadiga õhuhulga

reguleerimiseks) KVK silent EC125, ava

puurimine seina, paigaldus

tk 2 2 650,00 € 5 300,00 € 10% 530,00 € 10% 4 770,00 €

S1 (ventilatsiooni sissepuhkeseade) + G4

filter, lülitus reostaadiga õhuhulga

reguleerimiseks) KVK silent EC125 ava

puurimine seina, paigaldus

tk 2 2 650,00 € 5 300,00 € 10% 530,00 € 10% 4 770,00 €

Õhukvaliteedi andur (aranet 4 pro.

Kontroll: temperatuur ,niiskus%, CO2) tk 2 318,00 € 636,00 € 0% - € 0% 636,00 €

725 Ventilatsioonitorustikud

Akupanga ruumi ruumi õhuava koos

klapiga (Flexit Aero 160 + filter G4, Flexit

plastikust kate välisseinale (2-osaline),

võrkotsikuga ø160), puurimistööd,

paigaldus)

komp 2 371,00 € 742,00 € 20% 148,40 € 20% 593,60 €

73 Tuleohutus

734 Tulekustutusseadmed

Pulberkustuti 6kg (ABC) tk 2 95,40 € 190,80 € 0% - € 0% 190,80 €

Evakuatsiooni plaanid ja juhised obj 1 190,80 € 190,80 € 0% - € 0% 190,80 €

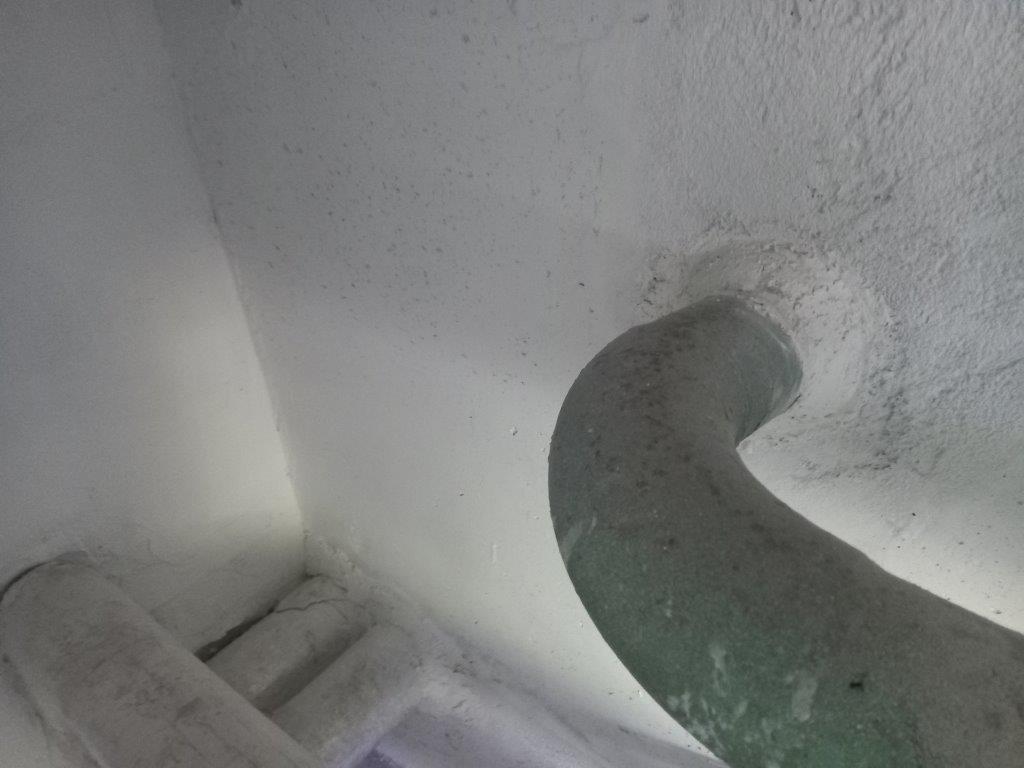

Läbiviikude GPG hermetiseerimine+

mastiks (tuletõkke tsoonist väljuvad

vertikaal ja horisontaal suunalised

läbiviigud)

tk 12 53,00 € 636,00 € 0% - € 0% 636,00 €

74 Tugevvoolu paigaldis

741 Elektri peajaotussüsteemid

Peatoite kilp (PJK) koos akupankade

ümberlülitusega, ventilatsiooni toide,

maja tsirkulatsioonipumpade toited ja

ümberlülitus, valgustus, pistkupesad)

tk 2 1 170,00 € 2 340,00 € 0% - € 0% 2 340,00 €

742 Kaabliteed

Kaabliteed kaabliredelid 200mm jm 0 0,00 € 0,00 € 0% - € 0% - €

743 Kaabeldus

Peakilbi ja varjumiskoha kilbi vaheline

peakaabel 5G4 jm 50 4,82 € 241,15 € 0% - € 0% 241,15 €

Inverteri ja varjumiskoha kilbi vaheline

kaabel 5G4 jm 40 4,82 € 192,92 € 0% - € 0% 192,92 €

Ventilatsiooniseadme toitekaabel kaabel

5G2,5 jm 70 3,33 € 232,99 € 0% - € 0% 232,99 €

Varjeruumi ja soojasõlme kibi vaheline

kaabel 5G4 jm 40 4,82 € 192,92 € 0% - € 0% 192,92 €

Elektrikaabel 3*1,5mm ja kaabli

kinnitusvahendid jm 135 2,14 € 289,06 € 0% - € 0% 289,06 €

Elektrikaabel 3*2,5mm ja kaabli

kinnitusvahendid jm 55 2,70 € 148,67 € 0% - € 0% 148,67 €

Pinnapealsed harutoosid IP55 kahene tk 20 8,70 € 174,05 € 0% - € 0% 174,05 €

Pinnapealsed pistikupesad IP55 kahene tk 10 20,42 € 204,16 € 0% - € 0% 204,16 €

Pinnapealsed lülitid IP44 tk 11 20,42 € 224,57 € 0% - € 0% 224,57 €

Kaablitorud ja kinnitid kmpl 1 2 384,49 € 2 384,49 € 0% - € 0% 2 384,49 €

744 Valgustussüsteemid

Seinapealsed valgustid (sisustusvalgusti

KX 18W, K4, IP54) tk 33 106,00 € 3 498,00 € 0% - € 0% 3 498,00 €

747 Varutoiteseadmed

Akupank 16,38 kWh obj 1 7 314,00 € 7 314,00 € 0% - € 0% 7 314,00 €

Inverter (ilma PV võimaluseta) tk 1 1 431,00 € 1 431,00 € 0% - € 0% 1 431,00 €

Ühenduskast (kuni 4 akupangale) tk 1 296,80 € 296,80 € 0% - € 0% 296,80 €

Paigaldus ja seadistamine tk 1 1 431,00 € 1 431,00 € 0% - € 0% 1 431,00 €

90 069,24 € 32 219,76 € 57 849,48 €

19 815,23 € 7 088,35 € 12 726,88 €

109 884,47 € 39 308,11 € 70 576,36 €

Tehtud tööde aktiga 1 kuulub tasumisele 39 308,11 €

Tellija esindaja: Töövõtja esindaja:

Rein Funk Martin Kärner

Kõikide objektil teostatavate tööde ja materjalide maksumus kokku koos km-ga:

Kõikide objektil teostatavate tööde ja materjalide maksumus kokku ilma km-ta:

Käibemaks 22%:

1/2

SAINT-GOBAIN EESTI AS Peterburi tee 75 11415 Tallinn Tel. +372 6209 510 ee.weber

13.05.2022

Tehniline informatsioon Materjali kulu Keskmiselt 2,0…2,5 kg/Fibo plokk, 0,8…1,0 kg/tellis

Tera suurus 4 mm

Soovituslik kihipaksus 15 mm

Minimaalne kihipaksus 10 mm

Maksimaalne kihipaksus 30 mm

Soovituslik veekogus 3,0 l/25 kg

Segamisaeg 3...5 min

Paigaldustemperatuur +5…+30°C

Kasutusaeg 3 h

Kuivamisaeg 24 h

Kõvenemisaja algus 30 min

Kivinemisaeg enne katmist 28 päeva

Konsistents Mört

Sideaine Tsement

Täiteaine Liiv

Lisand Plastifikaatorid

Survetugevus 10 MPa

Tulekindlusklass A1

Külmakindlus 50 tsüklit

Veeauru läbilaskvus μ 0,19/0,3

pH 12…13

Tihedus 1700 kg/m³

Värvus Tsementhall

Säilivusaeg 12 kuud

Pakend 25 kg, 1000 kg

Sertifikaat EN 998‐2:2010

• Tugev • Plastne • Tiksotroopne • Ilmastikukindel • Lihtsalt paigaldatav • Kvaliteetne

Tootekirjeldus weber M100/600 müürisegu on ette nähtud kergkruus -, kerg- betoon- ja betoonplokkidest ning silikaatkividest ja tellistest müüride ladumiseks. weber M100/600 sobib ka välitingimustes oleva korstna ja kamina kere ladumiseks.

Kasutusala Kivimaterjalidest müüride ladumine sise- ja välistingimustes

Aluspind Fibo-plokk, gaasbetoonplokk, betoonplokk, silikaatkivi, tellis

Tea enne kasutamist Kivid ja plokid peavad olema puhtad. Enne müüritööde algust ja ladumise ajal tuleb kaitsta kõiki ehitiseosi, mida müüritööde ajal võidakse kahjustada.

Segamine Segumasin, trell ja vispel

Tööjuhised Müürtöödeks on parim tuulevaikne ja +10...+20°C kraadiga ilm. Võimaluse korral tuleks laotavat müüri kaitsta tugeva tuule ja intensiivse päikese eest. Kergplokkide ladumisel võiks müürisegu keskmine kihipaksus vuugis olla 15 mm, väikse- mate kivide (tellis) ladumisel soovitatavalt mitte vähem kui 10 mm. Õhemate vuukide korral võib plokkide või kivide rihtimne keeruliseks osutuda. Liiga paksu vuugiga (>20 mm) ladumisel võivad värskelt laotud kivid vajuma hakata, mistõttu müür ei pruugi jääda sile. Liiga niiskete (või märgade) ning kuuma- de ja kuivade kivide ladumisel võib mördi nake kiviga jääda nõrgaks. Müürikive ei tohi pärast nakkumist ja paikarihtimist enam liigutada. Müüri ajutised katkestused on soovitatav teha astmelised. Mördipritsmed tuleb eemaldada müüri pinnalt enne mördi tardumist.

Järelhooldus Värskelt laotud müüri kaitsta vihma ja muu ohustava niiskuse eest. Kuiva ja sooja ilmaga tuleb takistada müüri liiga kiiret kuivamist. Väga soojade ilmade ja intnesiivse päiksepaistega müüri ladudes on soovitatav müüri 2...3 päeva jooksul veega kergelt niisutada.

Müürisegu plokkide, telliste ja silikaatkivide ladumiseks

weber M100/600

2/2

SAINT-GOBAIN EHITUSTOOTED AS Peterburi tee 75 11415 Tallinn Tel. +372 6209 510 ee.weber

13.05.2022

TECHNICAL DATASHEET PENOSIL Premium FireRated Gunfoam B1 Version 4.1

1/3

TECHNICAL DATASHEET

PENOSIL Premium FireRated Gunfoam B1 Professional fire protection foam with low post expansion for demanding users. Fire resistance is tested according to European standard EN 1366-4 and reaction to fire according to standard DIN 4102-1. Fire resistance is rated in accordance with EN 13501-2:2007. Packed in an aerosol can, can be used with a foam gun, moisture curing. Good resistance to moisture and mould. Fast curing. Great results at low temperatures. Cured foam is a good temperature and sound insulator. The foam has very good adhesion properties. Adheres well to most construction materials, except Teflon, polyethylene and silicone surfaces. After curing does not resist UV-radiation and needs to be covered.

Field of application

• Istallation of fire-proof doors and windows

• Sealing of joints in fire rated walls

• Sealing works in places which have heightened requirements concerning building materials reaction to fire properties

• Regular sealing works in construction sector

Application conditions

Usage temperature between +5 °C and +30 °C, best results at +20 °C. Can temperature during application +10 °C to +25 °C, best results at +20 °C. The surfaces must be clean from dust, loose particles and oil. Moisten dry substrate to ensure better results. Cured foam can be painted with water-based paints.

Application instruction

Hold the foam can in upright position, turn the gun to the can by holding the gun handle with one hand, and turn the can with the other hand. Make sure that the gun is not pointed to other persons when turning it. The can must not be screwed to the gun with the valve upside down or by turning the gun on the can. After fixing the gun, shake the can well at least 20 times. The foam output can be adjusted by gun trigger. Substrate should be moistened as the foam expands due to the moisture. A moistened surface ensures better results. At low temperatures foam can must be warmed before work in warm room or water. Temperature of room or water must not exceed +30 °C.

Cleaning

Uncured foam can be cleaned from tools and surfaces with PENOSIL Premium Foam Cleaner. Cured foam can be removed mechanically after softening with PENOSIL Premium Foam Remover. Hands, clothes and foam gun can be cleaned from uncured foam with moistened PENOSIL Premium Cleaning Wipes.

TECHNICAL DATASHEET PENOSIL Premium FireRated Gunfoam B1 Version 4.1

2/3

Technical specification

Properties Value Unit

Tack free time (TM 1014) 6-10 min

Cutting time (TM 1005) <30 min

Completely cured in joint, 3x5cm (+23 °C) <8 h

Curing pressure (TM 1009, moistened surfaces) <3 kPa

Post expansion (TM 1010) <50 %

Density in joint, 3x10cm (WGM106) 17-22 kg/m3

Dimensional stability (TM 1004) <1 %

Temperature resistance of cured foam -50…+90 °C

Fire resistance class (EN 13501-2) Up to EI 240

Fire class of cured foam (DIN 4102-1) B1

Tensile strength (TM 1018, moistened surfaces) >95 kPa

Compression strength (TM 1011, moistened surfaces) >40 kPa

Shear strength (TM 1012, moistened surfaces) >45 kPa

Thermal conductivity (EN 12667, TM 1020) 0,03 W/(m·K)

Sound reduction index Rst,w (EN ISO 10140) 60 dB Fire resistance is tested in accordance with European standard EN 1366-4 and reaction to fire in accordance with DIN 4102-1. The values specified were obtained at +23 °C and 50% relative humidity, unless otherwise specified.

Fire resistance tested according to EN 1366-4 and rated according to EN 13501-2:

Fire Resistance Classification

EI 30-V-X-F-W-00 to 40 Joint depth 100mm and over

EI 45-V-X-F-W-00 to 20 Joint depth 100mm and over

EI 60-V-X-F-W-00 to 10 Joint depth 100mm and over

EI 90-V-X-F-W-00 to 60 Joint depth 200mm and over

EI 120-V-X-F-W-00 to 30 Joint depth 200mm and over

EI 180-V-X-F-W-00 to 20 Joint depth 200mm and over

EI 240-V-X-F-W-00 to 10 Joint depth 200mm and over

This classification is valid for the following end use applications: 1) The foam shall be used as fire resistant joint seal in joints of concrete, block work and masonry vertical separating elements with density of 650kg/m3 or greater and thickness of 100mm and over. 2) Linear joints shall have vertical orientation only and shall be filled throughout. Joint seal shall be fitted flush with the surface of the supporting construction and protected with steel sheet, thickness at least 0,5 mm.

Colour

Light pink.

Package

1000 ml aerosol can, content 750 ml, 12 pcs in a box.

TECHNICAL DATASHEET PENOSIL Premium FireRated Gunfoam B1 Version 4.1

3/3

Storage

The cans must be stored and transported in vertical position. Store in a cool and dry place at +5 °C to +30 °C. The foam cans must not be stored above +50 °C, in vicinity of heat sources or in direct sun light. Guaranteed storage time in unopened package 12 months.

Safety requirements

The product is flammable. Protect from overheating and keep away from ignitions sources. Avoid direct sunlight and do not smoke during work. May cause sensitisation by inhalation and skin contact. Ensure sufficient ventilation during application. Wear safety glasses and gloves. Keep out of the reach of children. Cured foam can be handled without any danger to health. Detailed safety information is available on safety data sheet (SDS).

-

This product meets with the guidelines for the criteria of use listed reverse. The company is ordinary member of the GEV.

OM 099 January 27, 2021 valid until January 27, 2026

Licence Number: 12985/22.10.13

For the product Penosil Premium FireRated Gunfoam B1

Of company Krimelte OÜ

Due to application date January 26, 2021

With reference to the classification in accordance with the directives as stipulated in § 10 of the GEV trademark constitution

on behalf of the GEV for the above mentioned product as per § 5, section 4 of the GEV trademark constitution is awarded the licence for the use of the GEV trademark

Requirement guidelines for the awarding of the EMICODE licence

The product mentioned on the front side of the licence has to fulfil among others the following criteria in accordance with the Constitution and the guidelines of the Technical Advisory Board of the GEV:

• The product meets all the legal requirements, especially the chemical laws and their specifications.

• The product is solvent free as specified in clause 2.4 of the “GEV Classification Criteria”, except if it is a surface treatment product. If the product is assigned to a GISCODE product group then this can be labelled.

• A safety data sheet (SDS) according to local law in its respectively valid version is issued for the product.

• Carcinogenic, mutagenic, reprotoxic substances of the categories 1A or 1B are not added during the manufacture of the product.

• The testing of the product is performed in accordance with the GEV Testing Method. VOC determination is performed in a test chamber followed by the Tenax / thermal desorption procedures with subsequent GC/MS analysis.

• The assignment of an EMICODE class is performed according to the following criteria and TVOC/TSVOC concentration levels. The corresponding EMICODE class shall be used to label the product:

1) Installation products, adhesives and construction products

Parameter EC 1PLUS EC 1 EC 2

max. allowed concentration [µg/m³]

TVOC after 3 days < 750 < 1000 < 3000

TVOC after 28 days < 60 < 100 < 300

TSVOC after 28 days < 40 < 50 < 100

R value based on German AgBB LCI (NIK) after 28 days

1 - -

Sum of non-assessable VOC < 40 - -

Formaldehyde after 3 days < 50 < 50 < 50

Acetaldehyde after 3 days < 50 < 50 < 50

Sum of form- and acetaldehyde < 0.05 ppm < 0.05 ppm < 0.05 ppm

Sum of volatile C1A/C1B after 3 days

< 10 < 10 < 10

Any volatile C1A/C1B after 28 days

< 1 < 1 < 1

2) Products for floor surface treatments for parquet, mineral floors and resilient floorings

Parameter EC 1PLUS EC 1 EC 2

max. allowed concentration [µg/m³]

Sum TVOC + TSVOC after 28 days

≤ 100 thereof max.

40 SVOC

< 150 thereof max.

50 SVOC

< 450 thereof max. 100 SVOC

Formaldehyde after 3 days < 50 < 50 < 50

Acetaldehyde after 3 days < 50 < 50 < 50

Any volatile C1A/C1B after 3 days

< 10 < 10 < 10

Any volatile C1A/C1B after 28 days

< 1 < 1 < 1

Edition: 04.10.2017

www.rauakaubad.ee

Lk 1 / 3

HAMMERJACK OÜ Tel. +372 6729 515 [email protected] www.hammerjack.eu www.rauakaubad.ee

Toimivusdeklaratsioon Nr 082/66-010504/16.09.2018

1. Tootetüübi kordumatu identifitseerimiskood:

Betoonikruvi peitpea Ruspert

1a. Kehtib Hammerjack artiklinumbritele

66-010504075072, 66-010504075092, 66-010504075112, 66-010504075132 80-B91075072, 80-B91075092, 80-B91075112, 80-B91075132 80-K91075072, 80-K91075092, 80-K91075112, 80-K91075132 85-B91075072, 85-B91075092, 85-B91075112, 85-B91075132 89-B91075072, 89-B91075092, 89-B91075112, 89-B91075132

1b. Kehtib Tootja artiklinumbritele

„Joker Industrial Co., Ltd.“ - SSK07072, SSK07092, SSK07112, SSK07132, SSK07152 „Tecnicas Expansivas, S.L.“ – THDAV07072, THDAV07092, THDAV07112, THDAV07132, THDAV07152

2. Tüübi-, partii- või seerianumber või muu element, mis võimaldab ehitustoote identifitseerimist artikli 11 lõike 4 kohaselt:

On esitatud pakendil 2a. Partii nr alates KT26 kuni KT… ( vaata pakendilt ) 3. Tootja poolt ette nähtud ehitustoote kavandatud kasutusotstarve või -otstarbed kooskõlas kohaldatava ühtlustatud tehnilise kirjeldusega: Betoonikruvi on mõeldud kasutamiseks keskmise ja suure koormuse korral. ETA tunnustusega ankrut võib kasutada standardses sarrustamata või raudbetoonis tugevusklassiga vähemalt C20/25 kuni C50/60 vastavalt standardile EN206-1. Ankrut võib kasutada peamiselt staatiliste koormuste või aeglaselt muutuvate koormuste ankurdamiseks. Materjal: karastatud teras, ruspert pinnakattega. Tulekindlus: F120 Sobib metallprofiilide, torude, ventilatsioonilõõride, puitkonstruktsioonide ja ripplagede kinnitamiseks. Läbiv poltkinnitus, koormust võib rakendada kohe – puudub ooteaeg.

www.rauakaubad.ee

Lk 2 / 3

HAMMERJACK OÜ Tel. +372 6729 515 [email protected] www.hammerjack.eu www.rauakaubad.ee

Laiali suruv jõud kinnitusmaterjalis sisuliselt puudub, mis võimaldab ankruid lähestikku kinnitada ja väikseid kinnituskaugusi alusmaterjali servast. Nii eemaldamine kui ka ankru paigaldamine kiire ja lihtne, ette puuritud avasse. Paigaldus ei nõua tüüblt. 4. Artikli 11 lõikes 5 nõutud tootja nimi, registreeritud kaubanimi või registreeritud kaubamärk ja kontaktaadress:

Hammerjack OÜ Tänassilma tee 15

Saku Vald 76406, Harjumaa Tel: +372 6 729 515 Fax: +372 6 729 510

E-post: [email protected] 5. Vajaduse korral volitatud esindaja nimi ja kontaktaadress, kelle volitused hõlmavad artikli 12 lõikes 2 täpsustatud ülesandeid:

Pole asjakohane (vt 4. punkti) 6. V lisas sätestatud ehitustoote toimivuse püsivuse hindamise ja kontrollimise süsteem või süsteemid:

Süsteem 1 7. Ühtlustatud standardiga hõlmatud ehitustoote toimivusdeklaratsiooni korral:

Pole asjakohane 8. Sellise ehitustoote, mille kohta on antud Euroopa tehniline hinnang, toimivusdeklaratsiooni korral:

ETA 14/0374, ETA 15/0017 9. Deklareeritud toimivus Materjal: Karastatud teras SAE C1018, ruspert pinnakattega

Kruvid on mõeldud kinnitusseadmete paigalduseks sise- ja välistöödel. Ruspert pinnakate vastab keskkonnaklassile C3, lähtuvalt SS-EN ISO 12944-2s antud klassile.

Keskkonnaklass C3 – Mõõduka õhusaastatusega linnapiirkonnad, madala soolasisaldusega rannapiirkonnad, tootmisruumid, pesulad jne.

Montaaž Montaažil on soovitatav kasutada löökkruvikeerajat.

- Kontrollige enne paigaldamist betooni tugevust ja veenduge, et see vastab ettenähtud klassile millele kehtivad arvutuslikud koormused.

- Paigaldamisel jälgida alati minimaalset paigaldussügavust, kruvide vahekaugusi ja vahemaad kruvist alusmaterjali servani.

www.rauakaubad.ee

Lk 3 / 3

HAMMERJACK OÜ Tel. +372 6729 515 [email protected] www.hammerjack.eu www.rauakaubad.ee

- Puuritavate avade puhul on tähtis jälgida nende minimaalset sügavust, läbimõõtu ja et avad jääksid alusmaterjaliga risti.

- Puhastada ava tolmust ja muust ehitusprahist. - Keerake kruvi sisse TX30 otsaku.

Kui vastavalt artiklile 37 või 38 on kasutatud tehnilist eridokumentatsiooni, märkida nõuded, millele toode vastab :

Tootjatehase DOP + ETA sertifikaat 10. Punktides 1 ja 2 kindlaksmääratud toote toimivus on kooskõlas punktis 9 osutatud deklareeritud toimivusega. Eespool kirjeldatud toote toimivus vastab deklareeritud toimivusele. Käesolev toimivusdeklaratsioon on välja antud kooskõlas määrusega ( EL ) nr 305/2011 punktis 4 kindlaksmääratud tootja ainuvastutusel. Tootja poolt ja nimel allkirjastanud: Andrus Leppik, Ostujuht

16.09.2018

17.02.2022 - 2990

EMISSION CLASSIFICATION OF BUILDING MATERIALS

Krimelte OÜ

The classification working group set up by The Building Information Foundation RTS sr has approved the following product:

Penosil Premium SpeedFix Construction 878 Penosil Premium Polystyrol FixFoam 877 Penosil Premium SpeedFix EPS & XPS 878 Penosil Premium SpeedFix Thermo 878 Graphite Penosil Premium SpeedFix Montage All Season Penosil EasyPega Penosil EasyBond Olive A-45 Penosil Window & Door Elastic Foam Sealant Penosil EasyPRO Mousse Tous Usages Penosil Ventanas y Puertas Elastico Penosil Janelas e Portas Elástico Penosil Premium Elastic Gunfoam Olive PU-00 Penosil Window & Door Elastic Gunfoam 198 Penosil Elastic Gunfoam 198 Penosil Window & Door Elastic Foam 272 Penosil Elastic Foam 272 Penosil Premium Foam All Season Penosil Premium Gunfoam Low Expansion Penosil Premium StoneFix 827 Penosil Max Gap Filler Foam Sealant Penosil Standard Foam Winter Penosil Standard Foam All Season Olive PU-49 Penosil Gap Filling Strawfoam 278 Penosil Filling Foam 212 Penosil Premium Foam Penosil Mousse de Rebouchage Max Penosil GoldGun Penosil GoldGun Winter Penosil GoldGun All Season

Building Information Ltd, P.O.B 1004, FI-00101 Helsinki, Finland Tel +358207476400, cer.rts.fi/m1

Page: 1 / 3

Penosil GoldGun 65 Penosil GoldGun 65 Winter Penosil GoldGun 65 All Season Penosil GoldGun 65 Plus All Season Penosil GoldGun 70 Penosil GoldGun 70 Winter Penosil Neutral Foam Sealant Penosil EasyPRO All Purpose Foam Sealant Penosil EasyGun Foam Penosil Premium Gunfoam Winter Penosil Premium Gunfoam 65 Winter Penosil NewGun Foam All Season Penosil Standard Gunfoam All Season Penosil Standard Gunfoam 65 Winter Penosil Construction 70 Penosil Installation Gunfoam 65 Winter 191 Penosil Window & Door Gunfoam Winter 191 Penosil All Purpose Gunfoam Winter 165 Penosil EasyGun Foam 108 Penosil EasySpray Foam Penosil EasySpray Foam 111 Penosil Low Monomer SprayFoam 111 Olive PU-11 Penosil Standard Foam Olive PU-46 Penosil Strawfoam 265 Penosil Máxima Expansão Penosil Máxima Expansión Penosil Standard Gap Filling Gun Foam Penosil Premium Universal Gun Foam Penosil Gunfoam 146 Penosil Forever White Penosil Penosil Janelas e Portes Very Low Diisocyanate Monomer Penosil Ventanas y Puertas Very Low Diisocyanate Monomer Penosil Portes & Fenetres Elastique Penosil Low Monomer Gunfoam 122 Penosil Premium Gunfoam All Season Penosil Premium Gunfoam 65 All Season Penosil Standard Gunfoam Winter Penosil Standard Gunfoam 65 All Season Penosil EasyPro Todos Los Trabajos Penosil EasyPro Todos os Trabalhos Olive PU-50 Penosil All Purpose Gunfoam 124 Penosil Filling Gunfoam 137 Penosil Premium Foam B2 Penosil Premium Gunfoam B2

Building Information Ltd, P.O.B 1004, FI-00101 Helsinki, Finland Tel +358207476400, cer.rts.fi/m1

Page: 2 / 3

Penosil Premium Gunfoam 65 B2 Penosil Premium Gunfoam Penosil Premium Gunfoam 65 Penosil Premium Gunfoam 70 Penosil Standard Gunfoam Penosil Standard Gunfoam 65 Penosil Premium Gunfoam PU-47 Olive PU-45 Olive PU-47 Penosil Installation Gunfoam 65 156 Penosil Window & Door Gunfoam 156 Penosil All Purpose Gunfoam 172 Penosil Premium FastFoam 2K Penosil 2K Foam B2 202 Penosil Premium FireRated Foam B1 Penosil Premium FireRated Foam B1 296 Penosil Premium FireRated Gunfoam B1 Penosil Premium FireRated Gunfoam B1 187 Olive PU-476 PENOSIL Premium Gunfoam B1 Penosil GoldGun Low Expansion Penosil GoldGun Low Expansion All Season

as belonging to emission class M1 for building materials.

The classification is valid until 19.03.2025.

Krimelte OÜ has the right to equip its classified products with the classification mark and to use this classification mark when marketing these products.

The decision is in line with the requirements laid down in the Classification of Indoor Climate 2018 and the Classification of Building Materials: General Rules.

Building Information Ltd

Laura Apilo Managing Director

Katri Leino Secretary of the Classification Working Group

Building Information Ltd, P.O.B 1004, FI-00101 Helsinki, Finland Tel +358207476400, cer.rts.fi/m1

Page: 3 / 3

Sertifikaadi nr ET-0175-16 Lisa 1, 28.08.2018

Inspecta Estonia OÜ Teaduspargi 8, 12618 Tallinn, Eesti Tel +372 659 9470 [email protected]

vorm nr VHE017 09.17 1/1

Toode: Tuletõkkevaht PENOSIL Premium Fire Rated Gunfoam B1.

Tuletõkkevaht PENOSIL Premium Fire Rated Foam B1.

Toote detailne kirjeldus on toodud Krimelte OÜ tehnilises spetsifikatsioonis TTK-V01v3.

Vuugitäite paigaldustingimused

Vuugi sügavus/vuugi täitesügavus Vuugi laius/vuugitäite laius

Tulepüsivusklass

100/100 40/40

EI 45 – V – X – F– W 00 kuni W 40 100/100 30/30

100/100 20/20

EI 60 – V – X – F– W 00 kuni W 20 100/100 10/10

200/200 40/40

EI 120 – V – X – F– W 00 kuni W 40 200/200 30/30

200/200 20/20

200/200 10/10 EI 180 – V – X – F– W 00 kuni W 10

Toote klassifikatsioon

Tuletõkkevaht PENOSIL Premium Fire Rated Gunfoam B1 ja tuletõkkevaht PENOSIL Premium Fire Rated Foam B1 klassifikatsioon kooskõlas standardi EN 13501-2:2016 nõuetega on olenevalt vuugi mõõtmetest ja vuugitäite paigaldustingimustest järgmine:

(EI 45 - EI 180) – V – X – F – W 00 kuni W 40

Kasutusulatus

Antud klassifikatsioon kehtib järgnevate lõpprakenduste korral:

1. On lubatud kasutada vertikaalses seinas ja vertikaalses vuugis. 2. Sein võib olla betoonist, vahtbetoonist, plokkidest, tellistest, kusjuures seina paksus on ≥ 100 ja

tihedus ≥ 550kg/m3. 3. Vuugi laiust on lubatud vähendada. 4. Vuugitäituvus on lubatud vastavalt eeltoodud tabelile. 5. Liikumisvõime ±7,5%.

Tähistus

Toode peab olema tähistatud. Tähistusel peab olema näidatud:

• tulepüsivusklass;

• sertifikaadi number;

• sertifikaadi väljaandja nimi;

• tootja nimi;

• valmistamise aasta;

• toote identifikatsiooni number.

Aquastop Bond Nakkedispersioon Kontsentraat 1 : 10

Parandab naket aluspinna ja tasanduskihitide vahel

Tugevdab nõrgad aluspinnad

Kirjeldus

Omadused Vesilahustuv kontsentreeritud nakkedispersioon

Kasutada ainult lahjendatud kujul. Tänu suurele kuivaine sisaldusele säilitab kõik omadused ka suurima lubatud lahjendusprotsendi

korral Kanda pinnale üks kiht. Tugevdab pinda tänu heale imbuvusele Seob tolmu Ühtlustab pinna imavust, tagab suurepärase nakkuvuse Kasutada betoonpõrandate kruntimiseks enne tasandussegude pealekandmist Võib kasutada puitlaast- ja puitkiudplaatidest põrandate kruntimiseks enne põrandakatte (N:

linoleum) liimimist Peaagu lõhnatu.

EÜ LOÜ (VOC) sisalduse piirväärtused: (alaliik h 30 g/L). Maksimaalne LOÜ sisaldus tootes<30 g/L

Kasutusala Kasutada ainult lahjendatuna. Betoonpõrandate kruntimiseks enne tasandussegude pealekandmist, puitlaast- ja puitkiudplaatidest põrandate kruntimiseks enne põrandakatte (N: linoleum) liimimist või plaatimist. Nõrkade mineraalpindade (betoon, tellis, kivi, pahtel, krohv jt) kruntimiseks enne viimistlusmaterjalidega katmist. Sisetöödeks.

Töödeldavad pinnad Betoon, gaasbetoon, kivi, polümerkrohv, mineraalkrohv, pahtel, tsement, telliskivi, kipsplaat, puitkiudplaat, puitlaastplaat jt. Võib kasutada värske betooni kruntimiseks ( vähem kui 30 päeva vana)

Kvaliteedi standardid LOÜ (lenduvad orgaanilised ühendid) – sisaldused on vastavuses EL direktiiviga 2004/42/EÜ toodete ja teenuste kvaliteet on tagatud ISO 9001 standardile vastava kvaliteedijuhtimise

süsteemiga.

Tehnilised omadused

Pinna ettevalmistus Töödeldav pind peab olema kuiv, puhastatud tolmust, rasvast jm. mustusest ning kooruvatest elementidest. Varem värvitud pinnad puhastada vanast kooruvast värvist, karestada ja loputada veega. Hallituse või samblaga kaetud pinnad mehaaniliselt puhastada ja töödelda vahenditega Biotol E või Biotol Spray, loputada veega ja lasta kuivada. Pahteldatud ja krohvitud pinnad peavad olema enne töötlemist täielikult kuivanud.

Töötlemine Vahendit lahjendada veega. Pärast lahjendamist tuleb saadud lahus hoolikalt läbi segada. Aluspinna ja õhutemperatuur tööde tegemisel ei tohi olla alla +5°С ja üle +30°С. Kanda pinnale 1 kiht pintsli, pihusti või rulliga. Väga imavad pinnad tuleb töödelda „märg märjale“ meetodil kuni küllastumiseni. Peale kuivamist ei tohi krunt tekitada pinnale läikivat kilet.

Värvus Piimjasvalge, kuivanuna läbipaistev

Lahjendamine Toodet kasutada ainult lahjendatuna. Lahjendada veega 1:5....1:10 (1 osa vahendit : 5 osa vett)

Kulu Lahjendatud krundi kulu sõltub pinna imavusest: vähese imavusega pinnad (kivi, kipsplaat jne) - 10 m²/L keskmise imavusega pinnad (krohv, betoon, tellis, puitkiudplaat ja puitlaastplaat jne) - 6-8 m²/L suure imavusega pinnad (gaasbetoon, jne) - 3-4 m²/L

Lahusti Vesi

Kuivamisaeg 2-6 tundi temperatuuril 20ºC ning suhtelisel õhuniiskusel 65%. Madalamal temperatuuril ja suurema õhuniiskuse korral kuivamisaeg pikeneb. Pinna edasiseks töötluseks peab ootama täieliku kuivamiseni.

Töövahendid Pintsel, rull, pihusti.

Töövahendite puhastamine Töövahendid pesta puhtaks vee ja seebiga

Lisainfo

Külmakindlus Ei ole külmakindel

Säilivusaeg 2 aastat

Hoiustamine Säilitada ja transportida kindlalt suletud originaalpakendis temperatuuril +5°С kuni +30°C. Hoida külma ja otsese päikesekiirguse eest.

Ohutusnõuded Toodet ei ole klassifitseeritud ohtlikuks kooskõlas CLP-määrusega (EÜ) nr 1272/2008. Hoida lastele kättesaamatus kohas. Töötamisel järgida tööohutusnõudeid. Ennetava meetmena on soovitatav kasutada tavalisi isikukaitsevahendeid, millel on CE-märgis, vastavalt direktiivile 89/686/EÜ.

Jäätmekäitlus ja keskkonnakaitse

Värvitooteid tuleb alati käsitleda ettevaatlikult. Mitte valada kanalisatsiooni, vältida sattumist keskkonda. Vältida või minimaliseerida jääkide tekkimist. Kasutamata toode on tavajääde, kuid ei sobi tavajäätmete hulka ja nõuab erikäitlust, vedelad jäägid tuleb üle anda selle käitlemiseks keskkonnaluba omavale jäätmekäitlejale(jäätmekäitluskood 08 01 12, värvi ja lakijäätmed mida ei ole nimetatud koondnumbriga 08 01 11). Teavet jäätmekäitlejate kohta annab kohalik omavalitsus või Keskkonnaamet. Kuivanud jäägid võib suunata üldkasutatavale prügimäele. Tühi, kuiv pakend viia taaskasutamiseks pakendijäätmete kogumispunkti (Jäätmekood 15 01). Suuremate koguste puhul võtta ühendust Eesti Taaskasutusorganisatsioon MTÜ, [email protected]

Tihedus 1,3 kg/L.

Pakendid 1 L – 3 L – 10 L

TOIMIVUSDEKLARATSIOON

Nr. 107CPR2013-07-01

1. Tootetüübi kordumatu identifitseerimiskood:

Restaureerimiskrohv SAKRET HM-10

2. Kavandatud kasutusala(d):

Hea plastsuse ja kõrge veeauru läbilaskvusega lubitsementkrohv restaureerimiseks ja uusehitiste

krohvimiseks. Sise- ja välistöödeks.

3. Tootja:

SAKRET OÜ

Mäo küla, Paide linn, Järvamaa 72751, EESTI VABARIIK

Tel: +372 58188565; e-mail: [email protected]

4. Volitatud esindaja: puudub

5. Toimivuse püsivuse hindamise ja kontrolli süsteem: süsteem 4

6. a. Ühtlustatud standard: Toote omadusi ja nende vastavust on kontrollitud Leedu Energeetika Instituudis

(Lietovos Energetikos Institutas, Medžiagu Tyrimu ir Bandumu Laboratorija) ühtlustatud standardi EN

998-1:2016 alusel. Katseprotokoll väljastatud 18.06.2010.

7. Deklareeritud toimivus:

Põhiomadused Toimivus Ühtlustatud tehniline

kirjeldus

Survetugevus klass CS II

Nakketugevus betoonil ≥ 0,8 N/mm 2

FP:B

Kapillaarne veeimavus klass WC 0

Veeauru läbilaskvus, µ ≤ 24

Soojuserijuhtivus, λ10, dry (tab.väärtus) ≤ 0,47 W/(mK), P=50%

≤ 0,54 W/(mK), P=90%

Tuletundlikkus klass A1 (mittepõlev)

EN 998-1

8. Asjakohane tehniline dokumentatsioon ja/või tehniline eridokumentatsioon: puudub

Eespool kirjeldatud toote toimivus vastab deklareeritud toimivusele. Käesolev toimivusdeklaratsioon on välja

antud kooskõlas määrusega (EL) nr 305/2011 eespool nimetatud tootja ainuvastutusel.

Tootja poolt ja nimel allkirjastanud:

Teele Pullisaar, peatehnoloog

(Nimi ja ametikoht) (Allkiri)

Sakret OÜ, Mäo, Paide linn 14.01.2021

(Väljaandmise koht) (Väljaandmise kuupäev)

Aquastop Bond Nakkedispersioon Kontsentraat 1 : 10

Parandab naket aluspinna ja tasanduskihitide vahel

Tugevdab nõrgad aluspinnad

Kirjeldus

Omadused Vesilahustuv kontsentreeritud nakkedispersioon

Kasutada ainult lahjendatud kujul. Tänu suurele kuivaine sisaldusele säilitab kõik omadused ka suurima lubatud lahjendusprotsendi

korral Kanda pinnale üks kiht. Tugevdab pinda tänu heale imbuvusele Seob tolmu Ühtlustab pinna imavust, tagab suurepärase nakkuvuse Kasutada betoonpõrandate kruntimiseks enne tasandussegude pealekandmist Võib kasutada puitlaast- ja puitkiudplaatidest põrandate kruntimiseks enne põrandakatte (N:

linoleum) liimimist Peaagu lõhnatu.

EÜ LOÜ (VOC) sisalduse piirväärtused: (alaliik h 30 g/L). Maksimaalne LOÜ sisaldus tootes<30 g/L

Kasutusala Kasutada ainult lahjendatuna. Betoonpõrandate kruntimiseks enne tasandussegude pealekandmist, puitlaast- ja puitkiudplaatidest põrandate kruntimiseks enne põrandakatte (N: linoleum) liimimist või plaatimist. Nõrkade mineraalpindade (betoon, tellis, kivi, pahtel, krohv jt) kruntimiseks enne viimistlusmaterjalidega katmist. Sisetöödeks.

Töödeldavad pinnad Betoon, gaasbetoon, kivi, polümerkrohv, mineraalkrohv, pahtel, tsement, telliskivi, kipsplaat, puitkiudplaat, puitlaastplaat jt. Võib kasutada värske betooni kruntimiseks ( vähem kui 30 päeva vana)

Kvaliteedi standardid LOÜ (lenduvad orgaanilised ühendid) – sisaldused on vastavuses EL direktiiviga 2004/42/EÜ toodete ja teenuste kvaliteet on tagatud ISO 9001 standardile vastava kvaliteedijuhtimise

süsteemiga.

Tehnilised omadused

Pinna ettevalmistus Töödeldav pind peab olema kuiv, puhastatud tolmust, rasvast jm. mustusest ning kooruvatest elementidest. Varem värvitud pinnad puhastada vanast kooruvast värvist, karestada ja loputada veega. Hallituse või samblaga kaetud pinnad mehaaniliselt puhastada ja töödelda vahenditega Biotol E või Biotol Spray, loputada veega ja lasta kuivada. Pahteldatud ja krohvitud pinnad peavad olema enne töötlemist täielikult kuivanud.

Töötlemine Vahendit lahjendada veega. Pärast lahjendamist tuleb saadud lahus hoolikalt läbi segada. Aluspinna ja õhutemperatuur tööde tegemisel ei tohi olla alla +5°С ja üle +30°С. Kanda pinnale 1 kiht pintsli, pihusti või rulliga. Väga imavad pinnad tuleb töödelda „märg märjale“ meetodil kuni küllastumiseni. Peale kuivamist ei tohi krunt tekitada pinnale läikivat kilet.

Värvus Piimjasvalge, kuivanuna läbipaistev

Lahjendamine Toodet kasutada ainult lahjendatuna. Lahjendada veega 1:5....1:10 (1 osa vahendit : 5 osa vett)

Kulu Lahjendatud krundi kulu sõltub pinna imavusest: vähese imavusega pinnad (kivi, kipsplaat jne) - 10 m²/L keskmise imavusega pinnad (krohv, betoon, tellis, puitkiudplaat ja puitlaastplaat jne) - 6-8 m²/L suure imavusega pinnad (gaasbetoon, jne) - 3-4 m²/L

Lahusti Vesi

Kuivamisaeg 2-6 tundi temperatuuril 20ºC ning suhtelisel õhuniiskusel 65%. Madalamal temperatuuril ja suurema õhuniiskuse korral kuivamisaeg pikeneb. Pinna edasiseks töötluseks peab ootama täieliku kuivamiseni.

Töövahendid Pintsel, rull, pihusti.

Töövahendite puhastamine Töövahendid pesta puhtaks vee ja seebiga

Lisainfo

Külmakindlus Ei ole külmakindel

Säilivusaeg 2 aastat

Hoiustamine Säilitada ja transportida kindlalt suletud originaalpakendis temperatuuril +5°С kuni +30°C. Hoida külma ja otsese päikesekiirguse eest.

Ohutusnõuded Toodet ei ole klassifitseeritud ohtlikuks kooskõlas CLP-määrusega (EÜ) nr 1272/2008. Hoida lastele kättesaamatus kohas. Töötamisel järgida tööohutusnõudeid. Ennetava meetmena on soovitatav kasutada tavalisi isikukaitsevahendeid, millel on CE-märgis, vastavalt direktiivile 89/686/EÜ.

Jäätmekäitlus ja keskkonnakaitse

Värvitooteid tuleb alati käsitleda ettevaatlikult. Mitte valada kanalisatsiooni, vältida sattumist keskkonda. Vältida või minimaliseerida jääkide tekkimist. Kasutamata toode on tavajääde, kuid ei sobi tavajäätmete hulka ja nõuab erikäitlust, vedelad jäägid tuleb üle anda selle käitlemiseks keskkonnaluba omavale jäätmekäitlejale(jäätmekäitluskood 08 01 12, värvi ja lakijäätmed mida ei ole nimetatud koondnumbriga 08 01 11). Teavet jäätmekäitlejate kohta annab kohalik omavalitsus või Keskkonnaamet. Kuivanud jäägid võib suunata üldkasutatavale prügimäele. Tühi, kuiv pakend viia taaskasutamiseks pakendijäätmete kogumispunkti (Jäätmekood 15 01). Suuremate koguste puhul võtta ühendust Eesti Taaskasutusorganisatsioon MTÜ, [email protected]

Tihedus 1,3 kg/L.

Pakendid 1 L – 3 L – 10 L

TOIMIVUSDEKLARATSIOON

Ehitustööde määrus (EU) 305 2011

ASTRO®

PFP TORUSULGUR 0843-CPR-0498

1. Tootetüübi kordumatu tunnuskood:

Astro PFP Torusulgur

2. Tüüp, partii- või seerianumber või mis tahes muu element, mis võimaldab identifitseerida ehitustoodet, nagu on nõutav artikli 11 lõike 4 kohaselt:

Partiinumbri leiab pakendilt

3. Ehitustoote otstarbekohane kasutus vastavalt kohaldatavale ühtlustatud tehnospetsifikaadile, nagu tootja poolt ette nähtud ja kooskõlas kohaldatava Euroopa hindamisdokumendiga (European Assessment Document, edaspidi EAD): ETAG 026-2 (läbiviigutihendid):

3.1 Astro PFP Torusulguri otstarbekohane kasutussüsteemi eesmärgiks on taastada elastsete ja jäikade seina- ja põrandakonstruktsioonide tulekindlus kohtades, kus neisse on erinevate teenuste osutamise tõttu tehtud läbiviigud.

3.2 Astro PFP Torusulguri süsteemi poolt potentsiaalselt kasutust leidvad spetsiifilised konstruktsioonielemendid läbiviikude tihendamiseks on järgmised:

Elastsed seinad: Seina minimaalne paksus peab olema 100mm (välja arvatud juhul, kui ETA 19/0304 on sätestanud teisiti) ja sein peab sisaldama teraskarkassi, mis on mõlemalt küljelt vooderdatud vähemalt 2 kihi 12,5 paksuste kipstahvlitega.

Jäigad seinad: Seina minimaalne paksus peab olema 100mm (välja arvatud juhul, kui ETA 19/0304 on sätestanud teisiti) ja sein peab sisaldama betooni, poorbetooni või müüritist minimaalse tihedusega 650 kg/m3.

Jäigad põrandad: Põranda minimaalne paksus peab olema 150 mm ning see peab sisaldama poorbetooni või betooni minimaalse tihedusega 650 kg/ m3.

Tugikonstruktsioon peab olema liigitatud vastavalt EN 13501-2 nõutava tulekindlusperioodi jaoks.

3.3 Astro PFP Torusulguri süsteemi kasutatakse erinevate teenustega kaasneva läbiviigutihendina (täpsemaks kirjelduseks vt ETA 14/0249 Lisa A).

3.4 Euroopa tehnilise hinnangu (19/0304) kohaselt on Astro PFP Torusulguri eeldatavaks tööeaks sätestatud 10 aastat, kuid kui tootja poolt teabelehele kantud tingimused ja instruktsioonid pakendamiseks/ /transpordiks/säilitamiseks/ paigaldamiseks/kasutamiseks/ remontimiseks on täidetud, on Astro PFP Torusulguri eeldatav tööiga sisetingimustes hoituna ja UV-kiirguse ning niiskuse eest kaitstuna 30 aastat. Tööea kohta antud viiteid ei saa tõlgendada tootja poolse garantiina, need on mõeldud ainult nõuandena sobivate toodete valimiseks teostatud tööde eeldatava majanduslikult mõistliku tööea suhtes.

3.5 Tüüp Z2: mõeldud kasutamiseks sisetingimustes, kus õhuniiskusklass ei ole Z1, välja arvatud temperatuurid alla 0°C.

4. Tootja nimi, registreeritud kaubamärk ja kontaktaadress nagu nõutud on artikli 11 lõike 5 kohaselt:

Astroflame (Fire Seals) Ltd. Intumescent House

Unit 8, The IO Centre, Stephenson Road, Segensworth Fareham, Inglismaa PO15 5RU

5. Vajaduse korral tuuakse välja nimi ja kontaktaadress volitatud esindaja kohta, kelle volitused hõlmavad artikli 12 lõikes 2 kirjeldatud ülesandeid:

Ei kohaldata

6. Lisas V kirjeldatud ehitustoote toimivuse püsivuse hindamise ja kontrollimise süsteem või süsteemid:

AVCP-Süsteem 1

7. Juhul, kui kõnealuse ehitustoote toimivusdeklaratsioon on hõlmatud ühtlustatud standardiga:

Ei kohaldata

8. Juhul, kui kõnealuse ehitustoote toimivusdeklaratsiooni kohta on välja antud Euroopa tehniline hinnang :

See toimivusdeklaratsioon on koostatud kooskõlas dokumendi ETAG 026 osa 1 (üldine) ja 2 (läbiviigutihendid) suunistega.

ETA 19/0304 koostatud UL International (UK) Ltd teavitatud asutuse 0843 EC poolt, vastavustunnistus 0843-CPR-0498

TOIMIVUSDEKLARATSIOON

Ehitustööde määrus (EU) 305 2011

ASTRO®

PFP TORUSULGUR 0843-CPR-0498

9. Deklareeritud toimivus:

Olulised tunnused Toimivus Ühtlustatud tehnospetsifikaat või katsestandard

Tuletundlikkus NPD (New Product Development, uute toodete arendamine)

EN 13501-1

Tulekindlus Vt ETA 19/0304 Lisa A EN13501-2

Õhuläbilaskvus NPD EN1026

Veeläbilaskvus NPD ETAG 026-2 Lisa C

Ohtlike ainete eraldumine Tootja deklaratsiooni kohaselt vastab Astro PFP Torusulgur materjali ohutuse osas kehtivatele EL õigusaktidele. Vt ohutuskaarte.

Mehaaniline vastupidavus ja stabiilsus NPD EOTA TR 001

Löögikindlus/vastupidavus liikumisele NPD EOTA TR 001

Adhesioon NPD EOTA TR 001

Õhu kaudu leviva heli isolatsioon Rw (C;Ctr) = 58 (0;-3) dB*

EN 10140-2

Löögiheliisolatsioon NPD EN 10140-3

Termilised omadused NPD EN 12664, EN 12667, EN 12939

Veeauru läbilaskvus NPD EN ISO 12572, EN 12086

Püsivus ja töökindlus Z2 ISO 8339

*ühe küljega krae 160mm x 3.2 w/t PVC toruga

10. Punktides 1 ja 2 identifitseeritud toote toimivus on kooskõlas punktis 9 kirjeldatud toimivusega. See toimivusdeklaratsioon on välja antud punktis 4 identifitseeritud tootja vastutusel.

Tootja nimel alla kirjutanud:

P.Kieser – Tegevdirektor 16/8/2019 (Allakirjutamise koht: Segensworth Fareham)

C.Dickens – Tehniline juht 16/8/2019

Astroflame (Fireseals) LTD : Unit 8 , I.O Centre : Stephenson Road : Segensworth : Fareham : PO15 5RU Tel - 01329 844500 : Fax - 01329 844600 : Koduleht - www.astroflame.com : E-post -

[email protected]

UL INTERNATIONAL (UK) LTD Kingsland Business Park, Unit 1-3 Horizon, Wade Rd, Basingstoke RG24 8AH, United Kingdom

Member of

www.eota.eu

designated according to Article 29 of the Regulation (EU) No 305/2011 and member of EOTA (European Organisation for Technical Assessment, www.eota.eu)

ETA 19/0304 of 14/06/2019 – page 1 of 78

European Technical Assessment

ETA 19/0304 of 14/06/2019

Technical Assessment Body issuing the ETA and designated according to Article 29 of the Regulation (EU) No 305/2011: UL International (UK) Ltd

Trade name of the construction product

Astro PFP Pipe Closer

Product family to which the construction product belongs

Fire Stopping and Sealing Product: • Penetration Seals

Manufacturer

Astroflame Fireseals Ltd Intumescent House, Unit 8 The IO Centre, Stephenson Road, Segensworth, Fareham, Hampshire PO15 5RU

Manufacturing plant(s)

A/007

This European Technical Assessment contains

78 pages including 1 Annex which forms an integral part of this assessment.

This European Technical Assessment is issued in accordance with regulation (EU) No 305/2011, on the basis of

EAD 350454-00-1104, September 2017.

Corrigendum No. 1

Translations of this European Technical Assessment in other languages shall fully correspond to the original issued document and should be

identified as such.

Communication of this European Technical Assessment, including transmission by electronic means, shall be in full. However, partial

reproduction may be made, with the written consent of the issuing Technical Assessment Body. Any partial reproduction has to be

identified as such.

ETA 19/0304 of 14/06/2019 – Page 2 of 78

Table of Contents

I. SPECIFIC PARTS OF THE EUROPEAN TECHNICAL ASSESSMENT ..................................................................................................................... 3

1 Technical description of the product ....................................................................................................................................................... 3

2 Specification of the intended uses of the product in accordance with the applicable European Assessment Document (Hereinafter EAD): EAD 350454-00-1104 ...................................................................................................................................................................... 3

3 Performance of the product and references to the methods used for its assessment ............................................................................ 5

4 ASSESSMENT AND VERIFICATION OF CONSTANCY OF PERFORMANCE (HEREINAFTER AVCP) SYSTEM APPLIED, WITH REFERENCE TO ITS LEGAL BASE......................................................................................................................................................................................... 6

5 Technical details necessary for the implementation of the AVCP system, as provided for in the applicable EAD ................................... 6

6 Issued on: ................................................................................................................................................................................................. 7

ANNEX A – Resistance to Fire Classification – Astro PFP Pipe Closer ..................................................................................................................... 8

A.1 Flexible or rigid wall constructions with wall thickness of minimum 100 mm ......................................................................................... 8

A.1.1 Penetration seals, in drywalls and concrete/masonry walls .................................................................................................... 8

A.2 Flexible or rigid wall constructions with wall thickness of minimum 120 mm ....................................................................................... 23

A.2.1 Penetration seals, in drywalls and concrete/masonry walls .................................................................................................. 23

A.2.2 Penetration seals, in drywalls and concrete/masonry walls .................................................................................................. 30

A.2.3 Penetration seals, in drywalls and concrete/masonry walls .................................................................................................. 31

A.2.4 Penetration seals, in drywalls and concrete/masonry walls .................................................................................................. 32

A.2.5 Penetration seals, in drywalls and concrete/masonry walls .................................................................................................. 33

A.3 Rigid walls constructions with wall thickness of minimum 150 mm ...................................................................................................... 36

A.3.1 Penetration seals, in concrete/masonry walls ....................................................................................................................... 36

A.4 Rigid floor constructions with floor thickness of minimum 150 mm ...................................................................................................... 47

A.4.1 Penetration seals, surface mounted in concrete floors ......................................................................................................... 47

A.4.2 Penetration seals, surface mounted in concrete floors ......................................................................................................... 68

A.4.3 Penetration seals, surface mounted in concrete floors ......................................................................................................... 73

A.4.4 Penetration seals, surface mounted in concrete floors ......................................................................................................... 74

A.4.5 Penetration seals, surface mounted in concrete floors ......................................................................................................... 75

ETA 19/0304 of 14/06/2019 – Page 3 of 78

I. SPECIFIC PARTS OF THE EUROPEAN TECHNICAL ASSESSMENT

1 Technical description of the product

1) Astro PFP Pipe Closer is a pipe closure device used to form penetration seals where combustible pipes,

cables and metal pipes with insulation penetrate walls and floors. 2) The Astro PFP Pipe Closer is supplied with intumescent liner complete within metal steel shell, to be

clamped around the service and screw fixed back to the supporting element. The Astro PFP Pipe Closer may be supplied with powder coated steel or stainless steel shells.

3) In flexible walls, gaps between the pipe and the construction below 8mm must have a bead of Astro PFP

Astro PFP FR Acrylic to cover the opening, and for gaps 8mm or above, the seal must be plugged with 25mm deep Astro PFP FR Acrylic. In rigid walls, gaps between the pipe and the construction below 8mm must have a bead of Astro PFP Astro PFP FR Acrylic to cover the opening, and for gaps 8mm or above, the seal must be plugged with 20mm deep Astro PFP FR Acrylic on 20mm deep backing of stonewool.

In floors, gaps between the pipe and the construction below 10mm must have 20mm deep stonewool to plug the opening, and for gaps 10mm or above, the seal must be plugged with 10mm deep Astro PFP FR Acrylic on 40mm deep backing of stonewool. For closers installed on top side of floors, gaps between the pipe and the top side of the closer must have a bead of Astro PFP Astro PFP FR Acrylic to cover the opening. Astro PFP Pipe Closer are oversized to allow for the natural gradient of pipework for flow purposes and inconsistencies of pipe installation.

4) The applicant has submitted a written declaration that the product and/or constituents of the product

contains no substances which have been classified as dangerous according to Directive 67/548/EEC and Regulation (EC) No. 1272/2008 and listed in the ‘indicative list on dangerous substances’ of the EGDS – taking into account the installation conditions of the construction product and the release scenarios resulting from there.

In addition to the specific clauses relating to dangerous substances contained in this European Technical Assessment, there may be other requirements applicable to the products falling within its scope (e.g. transposed European legislation and national laws, regulations and administrative provisions). In order to meet the provisions of the Construction Products Regulation, these requirements need also to be complied with, when and where they apply.

5) The use category of Astro PFP Pipe Closer in relation to BWR 3 (Hygiene, health and environment) is IA1,

S/W3

2 Specification of the intended uses of the product in accordance with the applicable European Assessment Document (Hereinafter EAD): EAD 350454-00-1104

Detailed information and data is given in Annex A. The intended use of system Astro PFP Pipe Closer is to reinstate the fire resistance performance of flexible wall and rigid wall and floor constructions, where they are penetrated by services.

ETA 19/0304 of 14/06/2019 – Page 4 of 78

1) The specific elements of construction that the system Astro PFP Pipe Closer may be used to provide a penetration seal in, are as follows:

Flexible walls: The wall must have a minimum thickness of 100 mm and comprise steel studs

lined on both faces with minimum 2 layers of 12.5 mm thick boards. Rigid walls: The wall must have a minimum thickness of 100 mm and comprise concrete,

aerated concrete or masonry, with a minimum density of 650 kg/m3. Rigid floors: The floor must have a minimum thickness of 150 mm and comprise aerated

concrete or concrete with a minimum density of 650 kg/m3.

The supporting construction must be classified in accordance with EN 13501-2 for the required fire resistance period.

2) The system Astro PFP Pipe Closer may be used to provide a penetration seal with specific supporting

constructions and substrates (for details see Annex A).

3) The provisions made in this European Technical Assessment are based on an assumed working life of the Astro PFP Pipe Closer of 30 years, provided that the conditions laid down in the manufacturers datasheet and instructions for the packaging/transport/storage/installation/ use/repair are met. The indications given on the working life cannot be interpreted as a guarantee given by the producer, but are to be regarded only as a means for choosing the right products in relation to the expected economically reasonable working life of the works.

4) Type Z2: intended for use at internal conditions with humidity classes other than Z1, excluding

temperatures below 0°C.

ETA 19/0304 of 14/06/2019 – Page 5 of 78

3 Performance of the product and references to the methods used for its assessment

Product-type: Pipe Closer Intended use: Penetration Seal

Assessment method Essential characteristic Product Performance

BWR 2 Safety in case of fire

EN 13501-1 Reaction to fire Performance not assessed

EN 13501-2 Resistance to fire Annex A

BWR 3 Hygiene, health and environment

EN 1026 Air permeability No performance determined

EAD 350454-00-1104, Annex C

Water permeability No performance determined

Declaration of manufacturer & EN 16516

Content, emission and/or release of dangerous substances

Use categories: IA1, S/W3

Declaration of manufacturer

BWR 4 Safety in use

EOTA TR 001:2003 Mechanical resistance and stability No performance determined

EOTA TR 001:2003 Resistance to impact/movement No performance determined

EOTA TR 001:2003 Adhesion No performance determined

EAD 350454-00-1104, Clause 2.2.9

Durability Z2

BWR 5 Protection against noise

EN 10140-1,2,4,5/ EN ISO 717-1

Airborne sound insulation Rw (C;Ctr): 58 (-1;-7)

BWR 6 Energy economy and heat retention

EN 12664, EN 12667, EN 12939, EN ISO 8990, EN ISO 6946, EN ISO 14683, EN ISO

10211, EN ISO 10456

Thermal properties No performance determined

EN ISO 12572, EN 12086, EN ISO 10456

Water vapour permeability No performance determined

ETA 19/0304 of 14/06/2019 – Page 6 of 78

4 ASSESSMENT AND VERIFICATION OF CONSTANCY OF PERFORMANCE (HEREINAFTER AVCP) SYSTEM APPLIED, WITH REFERENCE TO ITS LEGAL BASE

According to the decision 1999/454/EC – Commission Decision of date 22nd June 1999 on the procedure for

attesting the conformity of construction products pursuant to Article 20(2) of Council Directive 89/106/EEC as

regards fire stopping, fire sealing and fire protective products, published in the Official Journal of the European

Union (OJEU) L178/52 of 14/07/1999, see http://eur-lex.europa.eu/JOIndex.do) of the European Commission1,

as amended, the system(s) of assessment and verification of constancy of performance (see Annex V to

Regulation (EU) No 305/2011) given in the following table(s) applies (apply).

Product(s) Intended use(s) Level(s) or class(es) System(s)

Fire stopping and Fire

Sealing Products

For fire

compartmentation

and/or fire protection

or fire performance

Any 1

5 Technical details necessary for the implementation of the AVCP system, as provided for in the applicable EAD

Tasks of the manufacturer:

Factory production control

The manufacturer shall exercise permanent internal control of production. All the elements, requirements

and provisions adopted by the manufacturer shall be documented in a systematic manner in the form of

written policies and procedures, including records of results performed. This production control system

shall ensure that the product is in conformity with this European Technical Assessment.

The manufacturer may only use initial / raw / constituent materials stated in the technical documentation

of this European Technical Assessment.

The factory production control shall be in accordance with the Control Plan of 5th June 2017 relating to the

European Technical Assessment ETA 19/0304 issued on 14/06/19 which is part of the technical

documentation of this European Technical Assessment. The "Control Plan" is laid down in the context of

the factory production control system operated by the manufacturer and deposited at UL International

(UK) Ltd.

The results of factory production control shall be recorded and evaluated in accordance with the provisions

of the Control Plan.

1 Official Journal of the European Communities L178/52 of 14/7/1999

ETA 19/0304 of 14/06/2019 – Page 7 of 78

Other tasks of the manufacturer

Additional information

The manufacturer shall provide a technical data sheet and an installation instruction with the following

minimum information:

(a) Technical data sheet:

• Field of application:

• Building elements for which the penetration seal is suitable, type and properties of the building elements like minimum thickness, density, and - in case of lightweight constructions – the construction requirements.

• Limits in size, minimum thickness etc. of the penetration seal

• Construction of the penetration seal including the necessary components and additional products (e.g. backfilling material) with clear indication whether they are generic or specific.

(b) Installation instruction:

• Steps to be followed

• Procedure in case of retrofitting

• Stipulations on maintenance, repair and replacement

6 Issued on:

14th June 2019

Report by: Reviewed by:

D. Yates C. Johnson Project Engineer Staff Engineer

Building and Life Safety Technologies Building and Life Safety Technologies

For and on behalf of UL International (UK) Ltd.

ETA 19/0304 of 14/06/2019 – Page 8 of 78

ANNEX A – Resistance to Fire Classification – Astro PFP Pipe Closer

A.1 Flexible or rigid wall constructions with wall thickness of minimum 100 mm

A.1.1 Penetration seals, in drywalls and concrete/masonry walls

Penetration Seal: Combustible pipes fitted with Astro PFP Pipe Closer, to both sides of the wall.

Construction details:

A.1.1.1

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 32 mm, wall thickness 1.2-3.7 mm

30 x 3.0 mm E 90 U/C, E 90 C/C

EI 60 U/C, EI 60 C/C Diameter 40 mm, wall thickness 1.2-3.7 mm

Diameter 50 mm, wall thickness 1.2-4.6 mm*

Diameter 55 mm, wall thickness 1.3-4.7 mm* 30 x 3.2 mm

EI 60 U/C, EI 60 C/C

Diameter 63 mm, wall thickness 1.5-5.0 mm* 30 x 3.6 mm

Diameter 75 mm, wall thickness 1.8-5.4 mm* 30 x 4.2 mm

Diameter 82 mm, wall thickness 2.0-5.6 mm* 30 x 4.6 mm

Diameter 90 mm, wall thickness 2.2-5.9 mm* 30 x 5.0 mm

Diameter 110 mm, wall thickness 2.7-6.6 mm* 30 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 9 of 78

ETA 19/0304 of 14/06/2019 – Page 10 of 78

A.1.1.1.1

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 110 mm, wall thickness 2.7-6.6 mm* 50 x 6.0 mm

E 90 U/U, E 90 C/U, E 90 U/C, E 90 C/C EI 60 U/U, EI 60 C/U, EI 60 U/C, EI 60 C/C

Diameter 125 mm, wall thickness 2.9-7.4 mm* 50 x 8.8 mm

Diameter 140 mm, wall thickness 3.0-8.3 mm* 50 x 11.5 mm

Diameter 160 mm, wall thickness 3.2-9.5 mm* 50 x 15.0 mm EI 90 U/C, EI 90 C/C

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 11 of 78

A.1.1.1.2

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 32 mm, wall thickness 2.4-4.6 mm

30 x 3.0 mm

E 90 U/U, E 90 C/U, E 90 U/C, E 90 C/C EI 60 U/U, EI 60 C/U, EI 60 U/C, EI 60 C/C

Diameter 40 mm, wall thickness 2.4-4.6 mm

Diameter 50 mm, wall thickness 2.4-4.6 mm

Diameter 55 mm, wall thickness 2.5-4.7 mm* 50 x 3.2 mm

Diameter 63 mm, wall thickness 2.5-5.0 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 2.6-5.4 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 2.6-5.6 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 2.6-5.9 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 2.7-6.6 mm* 50 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 12 of 78

A.1.1.1.3

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 110 mm, wall thickness 2.7-6.6 mm* 60 x 6.0 mm E 90 U/U, E 90 C/U, E 90 U/C, E 90 C/C EI 60 U/U, EI 60 C/U, EI 60 U/C, EI 60 C/C

Diameter 125 mm, wall thickness 2.9-7.4 mm* 60 x 9.0 mm

EI 60 U/U, EI 60 C/U Diameter 140 mm, wall thickness 3.0-8.3 mm* 60 x 11.5 mm

Diameter 160 mm, wall thickness 3.2-9.5 mm* 60 x 15.0 mm

Diameter 315 mm, wall thickness 9.2 mm 75 x 18 mm EI 60 C/C

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 13 of 78

A.1.1.2

Services Closer Inlay Classification

PE pipe according to EN 1519-1, EN 12201-2 and EN 12666-1, ABS according to EN 1455-1 and pipes made from SAN+PVC according to EN 1565-1

Diameter 32 mm, wall thickness 3.0-4.6 mm

30 x 3.0 mm

E 90 U/U, E 90 C/U, E 90 U/C, E 90 C/C EI 45 U/U, EI 45 C/U, EI 45 U/C, EI 45

C/C Diameter 40 mm, wall thickness 3.0-4.6 mm

Diameter 50 mm, wall thickness 3.0-4.6 mm

Diameter 32 mm, wall thickness 3.0-5.6 mm

E 90 U/C, E 90 C/C EI 60 U/C, EI 60 C/C

Diameter 40 mm, wall thickness 3.0-5.6 mm

Diameter 50 mm, wall thickness 3.0-5.6 mm*

Diameter 55 mm, wall thickness 3.0-6.0 mm* 30 x 3.2 mm

EI 60 U/C, EI 60 C/C

Diameter 63 mm, wall thickness 3.1-6.6 mm* 30 x 3.6 mm

Diameter 75 mm, wall thickness 3.2-7.5 mm* 30 x 4.2 mm

Diameter 82 mm, wall thickness 3.2-8.0 mm* 30 x 4.6 mm

Diameter 90 mm, wall thickness 3.3-8.6 mm* 30 x 5.0 mm

Diameter 110 mm, wall thickness 3.4-10.0 mm* 30 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 14 of 78

A.1.1.2.1

Services Closer Inlay Classification

PE pipe according to EN 1519-1, EN 12201-2 and EN 12666-1, ABS according to EN 1455-1 and pipes made from SAN+PVC according to EN 1565-1

Diameter 110 mm, wall thickness 3.4-10.0 mm* 50 x 6.0 mm E 90 U/U, E 90 C/U, E 90 U/C, E 90 C/C EI 60 U/U, EI 60 C/U, EI 60 U/C, EI 60

C/C

Diameter 125 mm, wall thickness 4.2-9.8 mm* 50 x 9.0 mm

EI 60 U/C, EI 60 C/C Diameter 140 mm, wall thickness 5.1-9.6 mm* 50 x 11.5 mm

Diameter 160 mm, wall thickness 6.2-9.5 mm* 50 x 15.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 15 of 78

A.1.1.2.2

Services Closer Inlay Classification

PE pipe according to EN 1519-1, EN 12201-2 and EN 12666-1, ABS according to EN 1455-1 and pipes made from SAN+PVC according to EN 1565-1

Diameter 32 mm, wall thickness 3.0-4.6 mm

50 x 3.0 mm E 120 U/U, EI 90 U/U Diameter 40 mm, wall thickness 3.0-4.6 mm

Diameter 50 mm, wall thickness 3.0-4.6 mm*

Diameter 55 mm, wall thickness 3.1-5.0 mm* 50 x 3.2 mm

E 90 U/U, E 90 C/U, E 90 U/C, E 90 C/C EI 60 U/U, EI 60 C/U, EI 60 U/C, EI 60

C/C

Diameter 63 mm, wall thickness 3.1-5.7 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 3.2-6.8 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 3.2-7.4 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 3.3-8.1 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 3.4-10.0 mm* 50 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 16 of 78

A.1.1.2.3

Services Closer Inlay Classification

PE pipe according to EN 1519-1, EN 12201-2 and EN 12666-1, ABS according to EN 1455-1 and pipes made from SAN+PVC according to EN 1565-1

Diameter 110 mm, wall thickness 3.4-10.0 mm* 60 x 6.0 mm E 90 U/U, E 90 C/U, E 90 U/C, E 90 C/C EI 60 U/U, EI 60 C/U, EI 60 U/C, EI 60

C/C

Diameter 125 mm, wall thickness 4.0-11.5 mm* 60 x 8.8 mm

Diameter 140 mm, wall thickness 4.4-12.8 mm* 60 x 11.5 mm

Diameter 160 mm, wall thickness 4.9-14.6 mm* 60 x 15.0 mm EI 90 U/U, EI 90 C/U, EI 90 U/C, EI 90 C/C

Diameter 200 mm, wall thickness 18.2 mm 75 x 10.8 mm EI 60 C/C

Diameter 250 mm, wall thickness 22.7 mm 75 x 12.6 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 17 of 78

A.1.1.3

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 32 mm, wall thickness 3.0-5.6 mm

30 x 3.0 mm E 90 U/C, E 90 C/C

EI 60 U/C, EI 60 C/C Diameter 40 mm, wall thickness 3.0-5.6 mm

Diameter 50 mm, wall thickness 3.0-5.6 mm

Diameter 32 mm, wall thickness 1.8-4.6 mm

30 x 3.0 mm E 90 U/U, E 90 C/U, E 90 U/C, E 90 C/C EI 60 U/U, EI 60 C/U, EI 60 U/C, EI 60

C/C Diameter 40 mm, wall thickness 1.8-4.6 mm

Diameter 50 mm, wall thickness 1.8-4.6 mm

Diameter 50 mm, wall thickness 1.8-5.6 mm* 30 x 3.0 mm

E 90 U/C, E 90 C/C EI 60 U/C, EI 60 C/C

Diameter 55 mm, wall thickness 2.0-5.7 mm* 30 x 3.2 mm

Diameter 63 mm, wall thickness 2.2-5.8 mm* 30 x 3.6 mm

Diameter 75 mm, wall thickness 2.5-5.9 mm* 30 x 4.2 mm

Diameter 82 mm, wall thickness 2.7-6.0 mm* 30 x 4.6 mm

Diameter 90 mm, wall thickness 2.9-6.1 mm* 30 x 5.0 mm

Diameter 110 mm, wall thickness 3.4-6.3 mm* 30 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 18 of 78

A.1.1.3.1

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 50 mm, wall thickness 1.8-5.6 mm* 50 x 3.0 mm E 90 U/C, E 90 C/C

EI 60 U/C, EI 60 C/C

Diameter 55 mm, wall thickness 2.0-6.0 mm* 50 x 3.2 mm

EI 60 U/C, EI 60 C/C

Diameter 63 mm, wall thickness 2.2-6.6 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 2.5-7.6 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 2.7-8.2 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 2.9-8.9 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 3.4-10.5 mm* 50 x 6.0 mm

Diameter 125 mm, wall thickness 3.8-11.7 mm* 50 x 8.8 mm

Diameter 140 mm, wall thickness 4.2-12.9 mm* 50 x 11.5 mm

Diameter 160 mm, wall thickness 4.9-14.6 mm* 50 x 15.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 19 of 78

A.1.1.3.2

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 50 mm, wall thickness 1.8-4.6 mm* 50 x 3.0 mm

E 90 U/U, E 90 C/U, E 90 U/C, E 90 C/C EI 60 U/U, EI 60 C/U, EI 60 U/C, EI 60

C/C

Diameter 55 mm, wall thickness 2.0-4.7 mm* 50 x 3.2 mm

Diameter 63 mm, wall thickness 2.2-5.0 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 2.5-5.4 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 2.7-5.6 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 2.9-5.9 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 3.4-6.6 mm* 50 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 20 of 78

A.1.1.3.3

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 110 mm, wall thickness 3.4-6.6 mm* 60 x 6.0 mm E 90 U/U, E 90 C/U, E 90 U/C, E 90 C/C EI 60 U/U, EI 60 C/U, EI 60 U/C, EI 60

C/C

Diameter 125 mm, wall thickness 3.9-9.0 mm* 60 x 9.0 mm EI 60 U/U, EI 60 C/U, EI 60 U/C, EI 60

C/C Diameter 140 mm, wall thickness 4.4-11.4 mm* 60 x 11.5 mm

Diameter 160 mm, wall thickness 4.9-14.6 mm* 60 x 15.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 21 of 78

A.1.1.4

Services Closer Inlay Classification

Wavin SiTech + PP-M B according to EN 13501-1

32-40 mm diameter/ 1.8 mm wall thickness 50 x 3.0 mm EI 120 U/U

50 mm diameter/ 1.8 mm wall thickness 50 x 3.2 mm

75 mm diameter/ 1.8-2.5 mm wall thickness 50 x 4.2 mm

E 120 U/U, EI 60 U/U 90 mm diameter/ 1.8-2.9 mm wall thickness 50 x 5.0 mm

110 mm diameter/ 1.8-3.4 mm wall thickness 50 x 6.0 mm

Aquatherm Green SDR9 MF PP-RP according to ISO 21003

32 mm diameter/3.0-5.6 mm wall thickness 30 x 3.0 mm

EI 120 C/C 40 mm diameter/3.0-5.6 mm wall thickness 50 x 3.0 mm

50 mm diameter/3.0-5.6 mm wall thickness 50 x 3.2 mm

63 diameter/3.6-7.0 mm wall thickness 50 x 3.6 mm

E 120 C/C, EI 60 C/C 75 diameter/4.1-8.4 mm wall thickness 50 x 4.2 mm

90 diameter/4.7-10.1 mm wall thickness 50 x 5.0 mm

110 diameter/5.6-12.3 mm wall thickness 50 x 6.0 mm

Geberit Silent PP according to DIN 4102

32-50 mm diameter/ 1.8 mm wall thickness 50 x 3.0 mm EI 120 U/U

75 mm diameter/1.8-2.5 mm wall thickness 50 x 4.2 mm

E 120 U/U, EI 60 U/U 90 mm diameter/1.8-2.9 mm wall thickness 50 x 5.0 mm

110 mm diameter/1.8-3.4 mm wall thickness 50 x 6.0 mm

Polo-Kal NG Poloplast PP-MV according to DIN 4102

32-40 mm diameter/1.8-2.0 mm wall thickness 50 x 3.0 mm EI 120 U/U

50 mm diameter/1.8-2.0 mm wall thickness 50 x 3.2 mm

75 mm diameter/1.9-2.6 mm wall thickness 50 x 4.2 mm

E 120 U/U, EI 90 U/U 90 mm diameter/1.9-2.9 mm wall thickness 50 x 5.0 mm

110 mm diameter/2.0-3.4 wall thickness 50 x 6.0 mm

Diameter 125 mm, wall thickness 3.9 mm 60 x 9.0 mm E 120 U/U, EI 120 U/C

Diameter 160 mm, wall thickness 4.9 mm 60 x 15 mm EI 120 U/U

Rehau Raupiano Plus PP-DD according to DIN 4102

40 mm diameter/1.8 mm wall thickness 50 x 3.0 mm E 120 U/U, EI 90 U/U

50 mm diameter/1.8 mm wall thickness 50 x 3.2 mm

75 mm diameter/1.8-2.2 mm wall thickness 50 x 4.2 mm

E 120 U/U, EI 60 U/U 90 mm diameter/1.8-2.4 mm wall thickness 50 x 5.0 mm

110 mm diameter/1.8-2.7 mm wall thickness 50 x 6.0 mm

Diameter 125 mm, wall thickness 3.1 mm 60 x 9.0 mm EI 120 U/U

Diameter 160 mm, wall thickness 3.9 mm 60 x 15.0 mm

ETA 19/0304 of 14/06/2019 – Page 22 of 78

Services Closer Inlay Classification

BluePower Multilayer pipe – TR02-PP according to EN 1451-1

32-40 mm diameter/1.8 mm wall thickness 50 x 3.0 mm E 120 U/U, EI 90 U/U

50 mm diameter/1.8 mm wall thickness 50 x 3.2 mm

75 mm diameter/1.8-2.5 mm wall thickness 50 x 4.2 mm

E 120 C/U, EI 60 C/U 90 mm diameter/1.8-2.9 mm wall thickness 50 x 5.0 mm

110 mm diameter/1.8-3.4 mm wall thickness 50 x 6.0 mm

125 mm diameter/2.3-3.8 mm wall thickness 60 x 9.0 mm EI 60 C/U

160 mm diameter/3.4-4.9 mm wall thickness 60 x 15.0 mm EI 90 C/U

ETA 19/0304 of 14/06/2019 – Page 23 of 78

A.2 Flexible or rigid wall constructions with wall thickness of minimum 120 mm

A.2.1 Penetration seals, in drywalls and concrete/masonry walls

Penetration Seal: Combustible pipes fitted with Astro PFP Pipe Closer, to both sides of the wall.

Construction details:

A.2.1.1

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 32-50 mm, wall thickness 2.4-3.7 mm* 50 x 3.0 mm

EI 120 C/C

Diameter 55 mm, wall thickness 2.4-3.9 mm* 50 x 3.2 mm

Diameter 63 mm, wall thickness 2.5-4.3 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 2.5-4.9 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 2.6-5.2 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 2.6-5.6 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 2.7-6.6 mm* 50 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 24 of 78

ETA 19/0304 of 14/06/2019 – Page 25 of 78

A.2.1.1.1

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 110 mm, wall thickness 2.7-6.6 mm* 50 x 6.0 mm

EI 120 C/C Diameter 125 mm, wall thickness 3.1-7.5 mm* 60 x 8.8 mm

Diameter 140 mm, wall thickness 3.5-8.4 mm* 60 x 11.5 mm

Diameter 160 mm, wall thickness 4.0-9.5 mm* 60 x 15.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 26 of 78

A.2.1.2

Services Closer Inlay Classification

PE pipe according to EN 1519-1, EN 12201-2 and EN 12666-1, ABS according to EN 1455-1 and pipes made from SAN+PVC according to EN 1565-1

Diameter 32-50 mm, wall thickness 3.0-4.6 mm* 50 x 3.0 mm EI 120 C/C

Diameter 55 mm, wall thickness 3.1-5.0 mm* 50 x 3.2 mm

E 120 C/C, EI 90 C/C

Diameter 63 mm, wall thickness 3.1-5.7 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 3.2-6.8 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 3.2-7.5 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 3.3-8.2 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 3.4-10.0 mm* 50 x 6.0 mm

Diameter 110 mm, wall thickness 3.4 mm* 50 x 6.0 mm EI 120 C/C

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 27 of 78

A.2.1.2.1

Services Closer Inlay Classification

PE pipe according to EN 1519-1, EN 12201-2 and EN 12666-1, ABS according to EN 1455-1 and pipes made from SAN+PVC according to EN 1565-1

Diameter 110 mm, wall thickness 3.4-10.0 mm* 50 x 6.0 mm E 120 C/C, EI 90 C/C

Diameter 125 mm, wall thickness 3.9-9.8 mm* 60 x 8.8 mm

EI 90 C/C Diameter 140 mm, wall thickness 4.4-9.7 mm* 60 x 11.5 mm

Diameter 160 mm, wall thickness 4.9-9.5 mm* 60 x 15.0 mm

Diameter 160 mm, wall thickness 9.5 mm* 60 x 15.0 mm EI 120 C/C

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 28 of 78

A.2.1.3

Services Closer Inlay Classification

PP pipe according to DIN 8077/8078

Diameter 32-50 mm, wall thickness 2.9-4.6 mm 50 x 3.0 mm EI 120 C/C

Diameter 55 mm, wall thickness 2.9-5.0 mm* 50 x 3.2 mm

E 120 C/C, EI 90 C/C

Diameter 63 mm, wall thickness 2.9-5.7 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 2.8-6.8 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 2.8-7.5 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 2.8-8.2 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 2.7-10 mm* 50 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 29 of 78

A.2.1.3.1

Services Closer Inlay Classification

PP pipe according to DIN 8077/8078

Diameter 110 mm, wall thickness 2.7-10 mm* 50 x 6.0 mm

E 120 C/C, EI 90 C/C Diameter 125 mm, wall thickness 3.3-11.3 mm* 60 x 8.8 mm

Diameter 140 mm, wall thickness 4.0-12.8 mm* 60 x 11.5 mm

Diameter 160 mm, wall thickness 4.9-14.6 mm* 60 x 15.0 mm EI 120 C/C

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 30 of 78

A.2.2 Penetration seals, in drywalls and concrete/masonry walls

Penetration Seal: Combustible pipes fitted with Astro PFP Pipe Closer, to both sides of the wall.

Construction details:

A.2.2.1

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 50 mm, wall thickness 2.4 mm # 60 x 15.0 mm EI 90 C/C

#Pipe fitted at 45° to the face of the partition in a horizontal plane

ETA 19/0304 of 14/06/2019 – Page 31 of 78

A.2.3 Penetration seals, in drywalls and concrete/masonry walls

Penetration Seal: Cables and pipes fitted with Astro PFP Pipe Closer, to both sides of the wall.

Construction details:

A.2.3.1

Services Closer Closer Inlay Classification

Cables up to 21 mm Ø, in partial or fully filled tied bundles up to 110 mm Ø (Closer internal diameter to match cable bundle size)

Up to 110 mm closer at 30 mm

height

Between 3.0 and 6.0 mm

E 120, EI 60

Cables up to 80 mm Ø, in partial or fully filled tied bundles up to 160 mm Ø (Closer internal diameter to match cable bundle size)

Up to 110 mm closer at 50 mm

height, 125-160 mm at 60 mm height

Between 3.0 and 15.0 mm

E 120, EI 60

None (blank). Hole behind closer to be fitted with minimum 25 mm thick stone mineral wool insulation at minimum 33 kg/m3.

Up to 110 mm closer at 30 mm

height

Between 3.0 and 6.0 mm

E 120, EI 60

None (blank). Hole behind closer to be fitted with minimum 25 mm thick stone mineral wool insulation at minimum 33 kg/m3.

160 mm closer at 60 mm height

15.0 mm EI 120

Uponor Aqua PEX pipe in pipe system

Diameter up to 25 mm pipes, wall thickness 0.6 mm, in bundles up to 55 mm

55 mm closer at 30 mm height

3.2 mm E 120, EI 90 C/C

ETA 19/0304 of 14/06/2019 – Page 32 of 78

A.2.4 Penetration seals, in drywalls and concrete/masonry walls

Penetration Seal: CS (Continuous Sustained) insulated metallic pipes fitted with Astro PFP Pipe Closer,

to both sides of the wall.

Construction details:

A.2.4.1

Services Insulation Closer Classification

Copper pipe or mild steel

Diameter 54 mm, wall thickness 1.2 mm 19 mm thick

Elastomeric insulation minimum class B-s3,d0

Ø 110 x 50 x 6.0 mm E 120 C/C, EI 90 C/C

Diameter 54 mm, wall thickness 1.2 mm 25 mm thick Phenolic

Foam insulation Ø 110 x 50 x 6.0

mm E 120 C/C, EI 60 C/C

Diameter 54 mm, wall thickness 1.2 mm 20 mm thick PE foam

insulation Ø 110 x 50 x 6.0

mm E 120 C/C, EI 90 C/C

ETA 19/0304 of 14/06/2019 – Page 33 of 78

A.2.5 Penetration seals, in drywalls and concrete/masonry walls

Penetration Seal: Combustible pipes fitted with Astro PFP Pipe Closer, to both sides of the Astro PFP FR

Board . Minimum separation between penetration seals and seal edges of 50 mm (Configuration 1 &

2). Maximum seal size 1200 mm wide x 600 mm high.

Construction details:

A.2.5.1

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

32-50 mm diameter / 1.9-3.7 mm wall thickness 50 x 3.0 mm E 120 U/C, EI 60 U/C

55 mm, / 1.9-4.0 mm wall thickness 50 x 3.2 mm

E 90 U/C, EI 60 U/C

63 mm, / 2.0-4.4 mm wall thickness 50 x 3.6 mm

75 mm, / 2.2-4.9 mm wall thickness 50 x 4.2 mm

82 mm, / 2.3-5.3 mm wall thickness 50 x 4.6 mm

90 mm, / 2.4-5.7 mm wall thickness 50 x 5.0 mm

110 mm diameter / 2.7-6.6 mm wall thickness 50 x 6.0 mm

ETA 19/0304 of 14/06/2019 – Page 34 of 78

ETA 19/0304 of 14/06/2019 – Page 35 of 78

A.2.5.2

Services Closer Inlay Classification

PE pipe according to EN 1519-1, EN 12201-2 and EN 12666-1, ABS according to EN 1455-1 and pipes made from SAN+PVC according to EN 1565-1

32-50 mm diameter / 3.0-4.6 mm wall thickness 50 x 3.0 mm E 120 U/C, EI 60 U/C

55 mm, / 3.0-5.2 mm wall thickness 50 x 3.2 mm

E 90 C/C, EI 60 C/C

63 mm, / 3.0-5.9 mm wall thickness 50 x 3.6 mm

75 mm, / 3.1-6.9 mm wall thickness 50 x 4.2 mm

82 mm, / 3.1-7.6 mm wall thickness 50 x 4.6 mm

90 mm, / 3.2-8.3 mm wall thickness 50 x 5.0 mm

110 mm, / 3.4-10.0 mm wall thickness 50 x 6.0 mm

ETA 19/0304 of 14/06/2019 – Page 36 of 78

A.3 Rigid walls constructions with wall thickness of minimum 150 mm

A.3.1 Penetration seals, in concrete/masonry walls

Penetration Seal: Combustible pipes fitted with Astro PFP Pipe Closer, to both sides of the wall.

Construction details:

A.3.1.1

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 32 mm, wall thickness 2.0-3.7 mm*

50 x 3.0 mm

E 240 U/U, E 240 C/U, E 240 U/C, E 240 C/C

EI 180 U/U, EI 180 C/U, EI 180 U/C, EI 180 C/C

Diameter 40 mm, wall thickness 2.0-3.7 mm*

Diameter 50 mm, wall thickness 2.0-3.7 mm*

Diameter 55 mm, wall thickness 2.1-3.9 mm* 50 x 3.2 mm

EI 180 U/U, EI 180 C/U, EI 180 U/C, EI 180 C/C

Diameter 63 mm, wall thickness 2.2-4.3 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 2.3-4.9 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 2.4-5.2 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 2.5-5.6 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 2.7-6.6 mm* 50 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 37 of 78

ETA 19/0304 of 14/06/2019 – Page 38 of 78

A.3.1.1.1

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 110 mm, wall thickness 2.7-6.6 mm* 50 x 6.0 mm EI 180 U/U, EI 180 C/U, EI 180 U/C, EI 180 C/C

Diameter 125 mm, wall thickness 3.1-7.5 mm* 60 x 8.8 mm EI 240 U/U, EI 240 C/U, EI 240 U/C, EI 240

C/C

Diameter 140 mm, wall thickness 3.5-8.4 mm* 60 x 11.5 mm

Diameter 160 mm, wall thickness 4.0-9.5 mm* 60 x 15.0 mm

Diameter 315 mm, wall thickness 9.2 mm 75 x 18 mm EI 120 C/C

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 39 of 78

A.3.1.2

Services Closer Inlay Classification

PE pipe according to EN 1519-1, EN 12201-2 and EN 12666-1, ABS according to EN 1455-1 and pipes made from SAN+PVC according to EN 1565-1

Diameter 32 mm, wall thickness 3.0-4.6 mm*

50 x 3.0 mm EI 240 U/U, EI 240 C/U, EI 240 U/C, EI 240 C/C

Diameter 40 mm, wall thickness 3.0-4.6 mm*

Diameter 50 mm, wall thickness 3.0-4.6 mm*

Diameter 55 mm, wall thickness 3.1-4.5 mm* 50 x 3.2 mm

E 240 U/U, E 240 C/U, E 240 U/C, E 240 C/C

EI 180 U/U, EI 180 C/U, EI 180 U/C, EI 180 C/C

Diameter 63 mm, wall thickness 3.1-4.3 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 3.2-4.1 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 3.3-3.9 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 3.3-3.8 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 3.4 mm* 50 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 40 of 78

A.3.1.2.1

Services Closer Inlay Classification

PE pipe according to EN 1519-1, EN 12201-2 and EN 12666-1, ABS according to EN 1455-1 and pipes made from SAN+PVC according to EN 1565-1

Diameter 110 mm, wall thickness 3.4 mm*

50 x 6.0 mm E 240 U/U, E 240 C/U, E 240 U/C, E 240 C/C

EI 180 U/U, EI 180 C/U, EI 180 U/C, EI 180 C/C

Diameter 125 mm, wall thickness 3.9-5.2 mm* 60 x 9.0 mm

EI 180 U/U, EI 180 C/U, EI 180 U/C, EI 180 C/C

Diameter 140 mm, wall thickness 4.3-7.0 mm* 60 x 11.5 mm

Diameter 160 mm, wall thickness 4.9-9.5 mm* 60 x 15.0 mm

Diameter 200 mm, wall thickness 18.2 mm 75 x 10.8 mm EI 60 C/C

Diameter 250 mm, wall thickness 22.7 mm 75 x 12.6 mm E 120 C/C EI 90 C/C

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 41 of 78

A.3.1.3

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 32 mm, wall thickness 1.6-5.5 mm*

30 x 3.0 mm

EI 240 U/C, EI 240 C/C

Diameter 40 mm, wall thickness 1.6-5.5 mm*

Diameter 50 mm, wall thickness 1.6-5.5 mm*

Diameter 55 mm, wall thickness 1.7-5.9 mm* 50 x 3.2 mm

Diameter 63 mm, wall thickness 1.8-6.5 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 2.1-7.3 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 2.2-7.9 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 2.3-8.5 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 2.7-10.0 mm* 50 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 42 of 78

A.3.1.3.1

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 110 mm, wall thickness 2.7-10.0 mm* 50 x 6.0 mm EI 240 U/C, EI 240 C/C

Diameter 125 mm, wall thickness 3.3-11.4 mm* 60 x 9.0 mm E 240 U/C, E 240 C/C

EI 180 U/C, EI 180 C/C Diameter 140 mm, wall thickness 4.0-12.8 mm* 60 x 11.5 mm

Diameter 160 mm, wall thickness 4.9-14.6 mm* 60 x 15.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 43 of 78

A.3.1.3.2

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 32 mm, wall thickness 1.6-5.5 mm*

30 x 3.0 mm EI 240 U/U, EI 240 C/U, EI 240

U/C, EI 240 C/C Diameter 40 mm, wall thickness 1.6-5.5 mm*

Diameter 50 mm, wall thickness 1.6-5.5 mm*

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 44 of 78

A.3.1.3.3

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 50 mm, wall thickness 1.6-5.5 mm* 50 x 3.0 mm EI 240 U/U, EI 240 C/U, EI 240 U/C, EI 240 C/C

Diameter 55 mm, wall thickness 1.7-5.9 mm* 50 x 3.2 mm

E 240 U/U, E 240 C/U, EI 60 U/U, EI 60 C/U

Diameter 63 mm, wall thickness 1.8-6.5 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 2.1-7.3 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 2.2-7.9 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 2.3-8.5 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 2.7-10.0 mm* 50 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 45 of 78

A.3.1.3.4

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 50 mm, wall thickness 1.6-5.5 mm* 50 x 3.0 mm EI 240 U/U, EI 240 C/U, EI 240 U/C, EI 240 C/C

Diameter 55 mm, wall thickness 1.7-5.6 mm* 50 x 3.2 mm

E 240 U/U, EI 90 U/U

Diameter 63 mm, wall thickness 1.8-5.7 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 2.0-5.9 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 2.1-6.0 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 2.3-6.1 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 2.7-6.3 mm 50 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 46 of 78

A.3.1.3.5

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 110 mm, wall thickness 2.7-10.0 mm* 60 x 6.0 mm E 240 U/U, E 240 C/U,

EI 60 U/U, EI 60 C/U Diameter 125 mm, wall thickness 33-11.4 mm* 60 x 8.8 mm

Diameter 140 mm, wall thickness 4.0-12.8 mm* 60 x 11.5 mm

Diameter 160 mm, wall thickness 4.9-14.6 mm* 60 x 15.0 mm E 240 U/U, E 240 C/U, E 240 U/C, E 240 C/C

EI 180 U/U, EI 180 C/U, EI 180 U/C, EI 180 C/C

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 47 of 78

A.4 Rigid floor constructions with floor thickness of minimum 150 mm

A.4.1 Penetration seals, surface mounted in concrete floors

Penetration Seal: Combustible pipes fitted with Astro PFP Pipe Closer, to the soffit of the floor.

Construction details:

ETA 19/0304 of 14/06/2019 – Page 48 of 78

A.4.1.1

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 32 mm, wall thickness 1.9-3.7 mm* 30 x 3.0 mm E 90 U/U, E 90 C/U, E 90 U/C, E 90 C/C

EI 60 U/U, EI 60 C/U, EI 60 U/C, EI 60 C/C Diameter 40 mm, wall thickness 1.9-3.7 mm*

Diameter 50 mm, wall thickness 2.0-3.7 mm*

Diameter 55 mm, wall thickness 2.1-3.9 mm* 30 x 3.2 mm

EI 60 U/U, EI 60 C/U, EI 60 U/C, EI 60 C/C

Diameter 63 mm, wall thickness2.2-4.3 mm* 30 x 3.6 mm

Diameter 75 mm, wall thickness 2.5-4.9 mm* 30 x 4.2 mm

Diameter 82 mm, wall thickness 2.6-5.2 mm* 30 x 4.6 mm

Diameter 90 mm, wall thickness 2.8-5.6 mm* 30 x 5.0 mm

Diameter 110 mm, wall thickness 3.2-6.6 mm* 30 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 49 of 78

A.4.1.1.1

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 32 mm, wall thickness 2.0-3.7 mm

50 x 3.0 mm

EI 120 U/C, EI 120 C/C

Diameter 40 mm, wall thickness 2.0-3.7 mm

Diameter 50 mm, wall thickness 2.0-3.7 mm*

Diameter 55 mm, wall thickness 2.4-3.9 mm* 50 x 3.2 mm

Diameter 63 mm, wall thickness 3.0-4.3 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 3.8-4.8 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 4.3-5.1 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 4.9-5.4 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 6.3 mm* 50 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 50 of 78

A.4.1.1.2

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 50 mm, wall thickness 2.0-3.7 mm* 50 x 3.0 mm

E 120 U/C, EI 90 U/C

Diameter 55 mm, wall thickness 2.1-4.0 mm* 50 x 3.2 mm

Diameter 63 mm, wall thickness 2.2-4.4 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 2.4-5.0 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 2.4-5.4 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 2.5-5.8 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 2.7-6.9 mm* 50 x 6.0 mm

Diameter 125 mm, wall thickness 2.9-7.6 mm* 50 x 8.8 mm

Diameter 140 mm, wall thickness 3.0-8.4 mm* 50 x 11.5 mm

Diameter 160 mm, wall thickness 3.2-9.5 mm* 50 x 15.0 mm

Diameter 160 mm, wall thickness 3.2-9.5 mm 50 x 15.0 mm E 180 U/C, E 180 C/C EI 90 U/C, EI 90 C/C

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 51 of 78

A.4.1.1.3

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 110 mm, wall thickness 6.3 mm* 60 x 6.0 mm

EI 120 U/C, EI 120 C/C

Diameter 125 mm, wall thickness 5.6-7.3 mm* 60 x 9.0 mm

Diameter 140 mm, wall thickness 5.0-8.2 mm* 60 x 11.5 mm

Diameter 160 mm, wall thickness 4.0-9.5 mm* 60 x 15.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 52 of 78

A.4.1.1.4

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 110 mm, wall thickness 2.7-6.3 mm* 60 x 6.0 mm

EI 60 U/C Diameter 125 mm, wall thickness 2.8-7.2 mm* 60 x 8.7 mm

Diameter 140 mm, wall thickness 3.0-8.2 mm* 60 x 11.4 mm

Diameter 160 mm, wall thickness 3.2-9.5 mm* 60 x 15.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 53 of 78

A.4.1.1.5

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 110 mm, wall thickness 3.2-6.6 mm* 60 x 6.0 mm

EI 60 U/U Diameter 125 mm, wall thickness 3.2-7.4 mm* 60 x 8.7 mm

Diameter 140 mm, wall thickness 3.2, 8.3 mm* 60 x 11.4 mm

Diameter 160 mm, wall thickness 3.2-9.5 mm* 60 x 15.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 54 of 78

A.4.1.1.6

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 110 mm, wall thickness 2.7-6.6 mm* 50 x 6.0 mm

EI 60 C/U Diameter 125 mm, wall thickness 2.8-7.4 mm* 60 x 8.7 mm

Diameter 140 mm, wall thickness 3.0-8.3 mm* 60 x 11.4 mm

Diameter 160 mm, wall thickness 3.2-9.5 mm* 60 x 15.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 55 of 78

A.4.1.2

Services Closer Inlay Classification

PE pipe according to EN 1519-1, EN 12201-2 and EN 12666-1, ABS according to EN 1455-1 and pipes made from SAN+PVC according to EN 1565-1

Diameter 32 mm, wall thickness 3.0-4.6 mm*

30 x 3.0 mm EI 60 U/U, EI 60 C/U, EI 60 U/C, EI 60

C/C Diameter 40 mm, wall thickness 3.0-4.6 mm*

Diameter 50 mm, wall thickness 3.0-4.6 mm*

Diameter 110 mm, wall thickness 10.0 mm 30 x 6.0 mm EI 180 U/C

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 56 of 78

A.4.1.2.1

Services Closer Inlay Classification

PE pipe according to EN 1519-1, EN 12201-2 and EN 12666-1, ABS according to EN 1455-1 and pipes made from SAN+PVC according to EN 1565-1

Diameter 50 mm, wall thickness 3.0-4.6 mm* 30 x 3.0 mm EI 60 U/U, EI 60 C/U, EI 60 U/C, EI 60

C/C Diameter 55 mm, wall thickness 3.0-5.2 mm* 30 x 3.2 mm

Diameter 63 mm, wall thickness 3.0-5.9 mm* 30 x 3.6 mm

EI 60 U/C, EI 60 C/C

Diameter 75 mm, wall thickness 3.1-6.9 mm* 30 x 4.2 mm

Diameter 82 mm, wall thickness 3.1-7.6 mm* 30 x 4.6 mm

Diameter 90 mm, wall thickness 3.2-8.3 mm* 30 x 5.0 mm

Diameter 110 mm, wall thickness 3.4-10.0 mm* 30 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 57 of 78

A.4.1.2.2

Services Closer Inlay Classification

PE pipe according to EN 1519-1, EN 12201-2 and EN 12666-1, ABS according to EN 1455-1 and pipes made from SAN+PVC according to EN 1565-1

Diameter 32-40 mm, wall thickness 3.0-4.6 mm 50 x 3.0 mm EI 240 U/C

Diameter 50 mm, wall thickness 3.0-4.6 mm 50 x 3.2 mm

Diameter 32-40 mm, wall thickness 3.0 mm 50 x 3.0 mm EI 240 U/U

Diameter 50 mm, wall thickness 3.0 mm 50 x 3.2 mm

Diameter 50 mm, wall thickness 3.0-4.6 mm* 50 x 3.0 mm

EI 60 U/U, EI 60 C/U

Diameter 55 mm, wall thickness 3.1-5.1 mm* 50 x 3.2 mm

Diameter 63 mm, wall thickness 3.1-5.8 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 3.2-6.9 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 3.3-7.5 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 3.3-8.2 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 3.4-10.0 mm* 50 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 58 of 78

A.4.1.2.3

Services Closer Inlay Classification

PE pipe according to EN 1519-1, EN 12201-2 and EN 12666-1, ABS according to EN 1455-1 and pipes made from SAN+PVC according to EN 1565-1

Diameter 110 mm, wall thickness 3.4-10.0 mm* 60 x 6.0 mm

EI 60 U/U, EI 60 C/U

Diameter 125 mm, wall thickness 3.9-11.3 mm* 60 x 8.8 mm

Diameter 140 mm, wall thickness 4.3-12.7 mm* 60 x 11.5 mm

Diameter 160 mm, wall thickness 4.9-14.6 mm* 60 x 15.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 59 of 78

A.4.1.2.4

Services Closer Inlay Classification

PE pipe according to EN 1519-1, EN 12201-2 and EN 12666-1, ABS according to EN 1455-1 and pipes made from SAN+PVC according to EN 1565-1

Diameter 32 mm, wall thickness 3.0-4.6 mm

50 x 3.0 mm

EI 120 U/C, EI 120 C/C

Diameter 40 mm, wall thickness 3.0-4.6 mm

Diameter 50 mm, wall thickness 3.0-4.6 mm

Diameter 55 mm, wall thickness 3.1-5.0 mm 50 x 3.2 mm

Diameter 63 mm, wall thickness 3.1-5.8 mm 50 x 3.6 mm

Diameter 75 mm, wall thickness 3.2-6.9 mm 50 x 4.2 mm

Diameter 82 mm, wall thickness 3.3-7.5 mm 50 x 4.6 mm

Diameter 90 mm, wall thickness 3.3-8.2 mm 50 x 5.0 mm

Diameter 110 mm, wall thickness 3.4-10.0 mm 50 x 6.0 mm

Diameter 125 mm, wall thickness 3.9-11.3 mm 50 x 8.8 mm

Diameter 140 mm, wall thickness 4.4-12.7 mm 50 x 11.5 mm

Diameter 160 mm, wall thickness 4.9-14.7 mm 50 x 15.0 mm E 180 U/C, E 180 C/C

EI 120 U/C, EI 120 C/C

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 60 of 78

A.4.1.3

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 32 mm, wall thickness 1.8-4.6 mm*

30 x 3.0 mm EI 120 U/U, EI 120 C/U, EI 120 U/C, EI

120 C/C Diameter 40 mm, wall thickness 1.8-4.6 mm*

Diameter 50 mm, wall thickness 1.8-4.6 mm*

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 61 of 78

A.4.1.3.1

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 50 mm, wall thickness 2.9 mm 50 x 3.2 mm EI 240 U/U

Diameter 50 mm, wall thickness 1.8-4.6 mm* 50 x 3.0 mm EI 120 U/U, EI 120 C/U, EI 120 U/C, EI

120 C/C

Diameter 55 mm, wall thickness 1.9-4.8 mm* 50 x 3.2 mm

EI 60 U/U, EI 60 C/U

Diameter 63 mm, wall thickness 2.0-5.0 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 2.2-5.4 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 2.3-5.6 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 2.4-5.9 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 2.7-6.6 mm* 50 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 62 of 78

A.4.1.3.2

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 50 mm, wall thickness 1.8-4.6 mm* 50 x 3.0 mm EI 120 U/U, EI 120 C/U, EI 120 U/C, EI

120 C/C

Diameter 55 mm, wall thickness 1.9-4.8 mm* 50 x 3.2 mm

EI 120 U/C, EI 120 C/C

Diameter 63 mm, wall thickness 2.0-5.0 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 2.2-5.4 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 2.3-5.6 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 2.4-5.9 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 2.7-6.6 mm* 50 x 6.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 63 of 78

A.4.1.3.3

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 50 mm, wall thickness 1.8-4.6 mm* 30 x 3.0 mm

EI 60 U/C, EI 60 C/C

Diameter 55 mm, wall thickness 1.9-5.1 mm* 50 x 3.2 mm

Diameter 63 mm, wall thickness 2.0-5.8 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 2.2-6.9 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 2.3-7.5 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 2.5-8.2 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 2.7-10.1 mm* 50 x 6.0 mm

Diameter 125 mm, wall thickness 4.7-11.4 mm* 50 x 8.8 mm

Diameter 140 mm, wall thickness 6.8-12.8 mm* 50 x 11.5 mm

Diameter 160 mm, wall thickness 9.5-14.6 mm* 50 x 15.0 mm

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 64 of 78

A.4.1.3.4

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 110 mm, wall thickness 2.7-6.6 mm* 60 x 6.0 mm

EI 120 U/C, EI 120 C/C Diameter 125 mm, wall thickness 3.4-8.9 mm* 60 x 8.8 mm

Diameter 140 mm, wall thickness 4.1-11.2 mm* 60 x 11.5 mm

Diameter 160 mm, wall thickness 4.9-14.6 mm* 60 x 15.0 mm EI 180 U/C, EI 180 C/C

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 65 of 78

A.4.1.3.5

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 110 mm, wall thickness 2.7-6.6 mm* 50 x 6.0 mm

EI 60 U/U

Diameter 125 mm, wall thickness 3.6-8.9 mm* 60 x 8.8 mm

Diameter 140 mm, wall thickness 4.7-11.3 mm* 60 x 11.5 mm

Diameter 160 mm, wall thickness 6.2-14.7 mm* 60 x 15.0 mm

Diameter 160 mm, wall thickness 6.2 mm 60 x 15.0 mm EI 90 U/U

* Typical pipe diameters shown, see below graph for intermediate sizes

ETA 19/0304 of 14/06/2019 – Page 66 of 78

A.4.1.4

Services Closer Inlay Classification

Wavin SiTech + PP-M B according to EN 13501-1

32-40 mm diameter/ 1.8 mm wall thickness 50 x 3.0 mm EI 240 U/U

50 mm diameter/ 1.8 mm wall thickness 50 x 3.2 mm

75 mm diameter/ 1.8-2.5 mm wall thickness 50 x 4.2 mm

EI 180 C/U 90 mm diameter/ 1.8-2.9 mm wall thickness 50 x 5.0 mm

110 mm diameter/ 1.8-3.4 mm wall thickness 50 x 6.0 mm

Aquatherm Green SDR9 MF PP-RP according to ISO 21003

32 mm diameter/3.6-5.6 mm wall thickness 30 x 3.0 mm

EI 240 C/C 40 mm diameter/3.6-5.6 mm wall thickness 50 x 3.0 mm

50 mm diameter/3.6-5.6 mm wall thickness 50 x 3.2 mm

63 diameter/5.6-12.3 mm wall thickness 50 x 3.6 mm

EI 120 C/C 75 diameter/4.4-8.4 mm wall thickness 50 x 4.2 mm

90 diameter/4.9-10.0 mm wall thickness 50 x 5.0 mm

110 diameter/5.6-12.3 mm wall thickness 50 x 6.0 mm

Geberit Silent PP according to DIN 4102

32-40 mm diameter/ 1.8 mm wall thickness 50 x 3.0 mm EI 240 U/U

50 mm diameter/ 1.8 mm wall thickness 50 x 3.2 mm

75 mm diameter/1.8-2.4 mm wall thickness 50 x 4.2 mm

EI 180 C/U 90 mm diameter/1.8-2.8 mm wall thickness 50 x 5.0 mm

110 mm diameter/1.8-3.4 mm wall thickness 50 x 6.0 mm

Polo-Kal NG Poloplast PP-MV according to DIN 4102

32-40 mm diameter/1.8-2.0 mm wall thickness 50 x 3.0 mm EI 240 U/U

50 mm diameter/1.8-2.0 mm wall thickness 50 x 3.2 mm

75 mm diameter/1.9-2.6 wall thickness 50 x 4.2 mm

EI 240 C/U 90 mm diameter/2.0-2.9 wall thickness 50 x 5.0 mm

110 mm diameter/2.0-3.4 wall thickness 50 x 6.0 mm

Diameter 125 mm, wall thickness 3.9 mm 60 x 9.0 mm EI 240 U/C

Diameter 160 mm, wall thickness 4.9 mm 60 x 15 mm E 240 C/U, EI 240 U/C

ETA 19/0304 of 14/06/2019 – Page 67 of 78

Services Closer Inlay Classification

Rehau Raupiano Plus PP-DD according to DIN 4102

40 mm diameter/1.8 wall thickness 50 x 3.0 mm EI 240 U/U

50 mm diameter/1.8 wall thickness 50 x 3.2 mm

75 mm diameter/1.8-2.2 mm wall thickness 50 x 4.2 mm

EI 120 C/U 90 mm diameter/1.8-2.4 mm wall thickness 50 x 5.0 mm

110 mm diameter/1.8-2.7mm wall thickness 50 x 6.0 mm

Diameter 125 mm, wall thickness 3.1 mm 60 x 9.0 mm EI 180 C/U

Diameter 160 mm, wall thickness 3.9 mm 60 x 15.0 mm E 240 C/U, EI 240 U/C

BluePower Multilayer pipe – TR02-PP according to EN 1451-1

32-40 mm diameter/1.8 mm wall thickness 50 x 3.0 mm EI 180 U/U

50 mm diameter/1.8 mm wall thickness 50 x 3.2 mm

75 mm diameter/1.8-3.4 mm wall thickness 50 x 4.2 mm

EI 180 C/U 90 mm diameter/1.8-3.4 mm wall thickness 50 x 5.0 mm

110 mm diameter/1.8-3.4 mm wall thickness 50 x 6.0 mm

125 mm diameter/3.4-4.9 mm wall thickness 60 x 9.0 mm

160 mm diameter/3.4-4.9 mm wall thickness 60 x 15.0 mm EI 240 C/U

ETA 19/0304 of 14/06/2019 – Page 68 of 78

A.4.2 Penetration seals, surface mounted in concrete floors

Penetration Seal: Combustible pipes fitted with Astro PFP Pipe Closer, to the soffit of the floor.

Construction details:

A.4.2.1

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 32 mm, wall thickness 2.0-3.7 mm*

50 x 3.0 mm

EI 120 C/C, EI 60 C/U

Diameter 40 mm, wall thickness 2.0-3.7 mm*

Diameter 50 mm, wall thickness 2.0-3.7 mm*

Diameter 55 mm, wall thickness 2.1-3.9 mm* 50 x 3.2 mm

Diameter 63 mm, wall thickness 2.2-4.3 mm* 50 x 3.6 mm

Diameter 75 mm, wall thickness 2.3-4.8 mm* 50 x 4.2 mm

Diameter 82 mm, wall thickness 2.4-5.1 mm* 50 x 4.6 mm

Diameter 90 mm, wall thickness 2.5-5.4 mm* 50 x 5.0 mm

Diameter 110 mm, wall thickness 2.7-6.3 mm* 50 x 6.0 mm

ETA 19/0304 of 14/06/2019 – Page 69 of 78

ETA 19/0304 of 14/06/2019 – Page 70 of 78

A.4.2.2

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Up to 200 mm diameter / 4.9-11.9 mm wall thickness 60 x 18 mm E 120 C/C, EI 60 C/C

Up to 250 mm diameter / 6.1-11.9 mm wall thickness 75 x 24 mm

EI 60 C/C Up to 315 mm diameter / 7.7-12.1 mm wall thickness 75 x 30 mm

Up to 400 mm diameter / 15.3 mm wall thickness 100 x 39 mm

ETA 19/0304 of 14/06/2019 – Page 71 of 78

A.4.2.3

Services Closer Inlay Classification

PE pipe according to EN 1519-1, EN 12201-2 and EN 12666-1, ABS according to EN 1455-1 and pipes made from SAN+PVC according to EN 1565-1

Up to 200 mm diameter / 6.2-18.2 mm wall thickness 60 x 18 mm E 240 C/C, EI 120 C/C

Up to 250 mm diameter / 11.5-18.4 mm wall thickness 75 x 24 mm EI 240 C/C

Up to 315 mm diameter / 18.7 mm wall thickness 75 x 30 mm

Up to 400 mm diameter / 36.3 mm wall thickness 100 x 39 mm EI 90 C/C

ETA 19/0304 of 14/06/2019 – Page 72 of 78

A.4.2.4

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Up to 200 mm diameter / 4.9-18.2 mm wall thickness 60 x 18 mm EI 120 C/C

Up to 250 mm diameter / 15.1-22.7 mm wall thickness 75 x 24 mm EI 60 C/C

Up to 315 mm diameter / 28.6 mm wall thickness 75 x 30 mm

Up to 400 mm diameter / 9.8-22.7 mm wall thickness 100 x 39 mm EI 30 C/C

ETA 19/0304 of 14/06/2019 – Page 73 of 78

A.4.3 Penetration seals, surface mounted in concrete floors

Penetration Seal: Metallic pipes fitted with Astro PFP Pipe Closer, to the soffit of the floor.

Construction details:

A.4.3.1

Services Insulation Closer Classification

Copper pipe or mild steel

Diameter 54 mm, wall thickness 1.2 mm 19 mm thick

Elastomeric insulation minimum class B-s3,d0

Ø 110 x 50 x 6.0 mm

E 240 C/C, EI 60 C/C

ETA 19/0304 of 14/06/2019 – Page 74 of 78

A.4.4 Penetration seals, surface mounted in concrete floors

Penetration Seal: Cables (in bundles up to 100 mm Ø) fitted with Astro PFP Pipe Closer, to the soffit of the floor.

Construction details:

A.4.4.1

Services Closer Classification

None (blank) Ø 55 x 30 x 3.2 mm E 240, EI 60

None (blank) Ø 160 x 60 x 15.0 mm EI 120

Cables up to 21 mm Ø, in bundles up to 55 mm Ø Ø 55 x 30 x 3.2 mm EI 120

Cables up to 21 mm Ø, in bundles up to 100 mm Ø Ø 110 x 50 x 6.0 mm EI 90

Cables up to 21 mm Ø, in bundles up to 160 mm Ø Ø 160 x 60 x 15.0 mm EI 180

ETA 19/0304 of 14/06/2019 – Page 75 of 78

A.4.5 Penetration seals, surface mounted in concrete floors

Penetration Seal: Combustible pipes fitted with Astro PFP Pipe Closer, to the top face of the floor.

Construction details:

A.4.5.1

Services Closer Inlay Classification

PVC-U pipe according to EN 1329-1, EN 1452-1 and EN 1453-1 and PVC-C according to EN 1566-1

Diameter 32 mm, wall thickness 1.9-3.7 mm 50 x 3.0 mm

EI 240 U/C Diameter 40 mm, wall thickness 1.9-3.7 mm 50 x 3.0 mm

Diameter 50 mm, wall thickness 1.9-3.7 mm 50 x 3.2 mm

Diameter 55 mm, wall thickness 2.0-4.0 mm 50 x 3.2 mm

EI 120 U/C

Diameter 63 mm, wall thickness 2.1-4.4 mm 50 x 3.6 mm

Diameter 75 mm, wall thickness 2.4-5.0 mm 50 x 4.2 mm

Diameter 82 mm, wall thickness 2.5-5.3 mm 50 x 4.6 mm

Diameter 90 mm, wall thickness 2.7-5.7 mm 50 x 5.0 mm

Diameter 110 mm, wall thickness 3.2-6.6 mm 50 x 6.0 mm

Diameter 125 mm, wall thickness 5.0-7.5 mm 60 x 8.8 mm

E240 U/C, EI 180 U/C Diameter 140 mm, wall thickness 6.9-8.3 mm 60 x 11.5 mm

Diameter 160 mm, wall thickness 9.5 mm 60 x 15 mm

ETA 19/0304 of 14/06/2019 – Page 76 of 78

ETA 19/0304 of 14/06/2019 – Page 77 of 78

A.4.5.2

Services Closer Inlay Classification

PE pipe according to EN 1519-1, EN 12201-2 and EN 12666-1, ABS according to EN 1455-1 and pipes made from SAN+PVC according to EN 1565-1

Diameter 32 mm, wall thickness 3.0-4.6 mm 50 x 3.0 mm

EI 240 U/C Diameter 40 mm, wall thickness 3.0-4.6 mm 50 x 3.0 mm

Diameter 50 mm, wall thickness 3.0-4.6 mm 50 x 3.2 mm

Diameter 55 mm, wall thickness 3.0-5.1 mm 50 x 3.2 mm

E 240 U/C, EI 60 U/C

Diameter 63 mm, wall thickness 3.0-5.8 mm 50 x 3.6 mm

Diameter 75 mm, wall thickness 3.1-6.9 mm 50 x 4.2 mm

Diameter 82 mm, wall thickness 3.2-7.5 mm 50 x 4.6 mm

Diameter 90 mm, wall thickness 3.2-8.2 mm 50 x 5.0 mm

Diameter 110 mm, wall thickness 3.4-10.0 mm 50 x 6.0 mm

Diameter 125 mm, wall thickness 5.2-9.9 mm 60 x 8.8 mm

EI 60 U/C Diameter 140 mm, wall thickness 7.0-9.7 mm 60 x 11.5 mm

Diameter 160 mm, wall thickness 9.5 mm 60 x 15 mm

ETA 19/0304 of 14/06/2019 – Page 78 of 78

A.4.5.3

Services Closer Inlay Classification

PP pipe according to EN 1451-1

Diameter 32 mm, wall thickness 2.9-4.6 mm 50 x 3.0 mm

E 240 U/C, EI 180 U/C Diameter 40 mm, wall thickness 2.9-4.6 mm 50 x 3.0 mm

Diameter 50 mm, wall thickness 2.9-4.6 mm 50 x 3.2 mm

Diameter 55 mm, wall thickness 3.5-5.1 mm 50 x 3.2 mm

E 180 U/C, EI 90 U/C

Diameter 63 mm, wall thickness 4.4-5.8 mm 50 x 3.6 mm

Diameter 75 mm, wall thickness 5.8-6.9 mm 50 x 4.2 mm

Diameter 82 mm, wall thickness 6.6-7.5 mm 50 x 4.6 mm

Diameter 90 mm, wall thickness 7.5-8.2 mm 50 x 5.0 mm

Diameter 110 mm, wall thickness 10.0 mm 50 x 6.0 mm

Diameter 125 mm, wall thickness 11.3 mm 60 x 8.8 mm

E 240 U/C, EI 60 U/C Diameter 140 mm, wall thickness 12.7 mm 60 x 11.5 mm

Diameter 160 mm, wall thickness 14.6 mm 60 x 15 mm

Astroflame (Fireseals) LTD : Unit 8 , I.O Centre : Stephenson Road : Segensworth : Fareham : PO15 5RU T - 01329 844500 : F - 01329 844600 : W - www.astroflame.com : E - [email protected]

P A S S I V E F I R E S T O P S Y S T E M S

Astro PFP Pipe Closer

Revision 4 - 21st April 2021

Technical Data Sheet

ETA - 21/0025 CE-2531-CPR-CXO10142

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

ETA - 21/0025 CE-2531-CPR-CXO10142

> Technical Data General Product Description > Page 1

> Technical Data PVC pipes in ≥100mm thick flexible and rigid walls > Page 2

> Technical Data PE & ABS pipes in ≥100mm thick flexible and rigid walls > Page 3

> Technical Data PP pipes in ≥100mm thick flexible and rigid walls > Page 4

> Technical Data PVC, PE & ABS pipes in ≥120mm thick flexible & rigid walls > Page 5

> Technical Data PP pipes in ≥120mm thick flexible and rigid walls > Page 6

> Technical Data Composite pipes in ≥100mm thick flexible and rigid walls > Page 7

> Technical Data Empty holes in ≥100mm thick flexible and rigid walls > Page 8

> Technical Data Cable bundles in ≥100mm thick flexible and rigid walls > Page 8

> Technical Data PEX bundles in ≥100mm thick flexible and rigid walls > Page 8

> Technical Data Metal pipes in ≥100mm thick flexible and rigid walls > Page 9

> Technical Data PVC, PE & ABS pipes in ≥150mm thick rigid walls > Page 10

> Technical Data PP pipes in ≥150mm thick rigid walls > Page 11

> Technical Data PVC pipes in floors (soffit application) > Page 12

> Technical Data PE & ABS pipes in floors (soffit application) > Page 13

> Technical Data PP pipes in floors (soffit application) > Page 14

> Technical Data PVC, PE & ABS pipes in floors (top side application) > Page 15

> Technical Data PP pipes in floors (top side application) > Page 16

> Technical Data Composite pipes in floors > Page 17

> Technical Data Empty holes in floors > Page 18

> Technical Data Cable bundles in floors > Page 18

> Technical Data Metal pipes in floors > Page 18

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 1

ETA - 21/0025 CE-2531-CPR-CXO10142

General Product Description

Astro PFP Pipe Closer are designed to maintain the fire resistance of fire rated walls and floors, where these are breached by service penetrations and may be used in drywalls, masonry or concrete walls and floors.

Each closer consists of a red coated circular steel shell that splits in two to fit around the service penetrations by means of a simple ’slidelock’ system. The steel shell contains a graphite based reactive material which reacts when exposed to heat from fire, closing the openings left by the softening combustible material.

General Guide

Minimum separations and limitations: Services can be sealed as specified in the detailed drawings. Services within the Astro PFP Pipe Closer systems do not require a minimum separation, and only requires sufficient space or separation to securely fit the closers onto the substrate.

Supporting constructions: Flexible walls must have a minimum thickness of 100mm and comprise steel studs or timber studs*) lined on both faces with minimum 2 layers of 12.5 mm thick boards. Rigid walls must have a minimum thickness of 100 mm and comprise concrete, aerated concrete or masonry, with a minimum density of 650 kg/m3. Rigid floors must have a minimum thickness of 150 mm and comprise aerated concrete or concrete with a minimum density of 650 kg/m3. The supporting construction must be classified in accordance with EN 13501-2 for the required fire resistance period.

*) Timber studs: no part of the penetration seal may be closer than 100 mm to a stud, and minimum 100 mm of insulation of class A1 or A2 according to EN 13501-1 must be provided within the cavity between the penetration seal and the stud.

Installation

1. For sealing service penetrations in floors, a single closer is installed on the top or underside of the floor, and for flexible and solid walls, a closer is installed on both sides of the wall, in accordance to the detailed drawings on pages 2 to 18.

2. Before fitting the closer ensure that any gaps between the service penetrations and the separating element are sealed as follows:

In drywalls, gaps between the services and the construction below 8mm must have a bead of Astro PFP FR Acrylic to cover the opening, and for gaps 8mm or above, the seal must be plugged with 25mm deep Astro PFP FR Acrylic.

In masonry or concrete walls, gaps between the services and the construction below 8mm must have a bead of Astro PFP FR Acrylic to cover the opening, and for gaps 8mm or above, the seal must be plugged with 20mm deep Astro PFP FR Acrylic on 20mm deep backing of stonewool.

In floors, gaps between the services and the construction below 10mm must have 20mm deep stonewool to plug the opening, and for gaps 10mm or above, the seal must be plugged with 10mm deep Astro PFP FR Acrylic on 40mm deep backing of stonewool.

For annular gaps larger than 30mm wide, see installation instructions for Astroflame PFP FR Boards.

3. Place a closer around the service penetrations and ensure that the closer shell and fixing lugs are positioned tightly to the surface of the wall, or the floor, so that the anchors/fixings can be inserted fully.

4. Where the surface is uneven, apply a sealing bead of PFP FR Acrylic between the wall/floor and the closer shell.

5. Attach the closer with steel screws, anchors or bolts that are suitable for the substrate that the closer will be fitted to. For drywalls use ≥ Ø4mm drywall or wood screws with a length suitable for the number of boards that form the wall. Please note that some drywall applications require M5 drywall anchors. For concrete or masonry walls and floors, use ≥ Ø4 x 40mm long masonry screws or expansion bolts.

6. On site where the penetration size is greater than a plastic pipe diameter and/or a pipe is at an angle an oversized closer can be used. Astro PFP Pipe Closer are tested ‘oversize’, i.e. the internal diameter of the closer can be larger than a pipe. Any gaps between a pipe and a construction should not in any case exceed 55mm width.

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 2

ETA - 21/0025 CE-2531-CPR-CXO10142

≥ 100MM DRYWALLS, MASONRY OR CONCRETE WALLS

PVC PLASTIC PIPES FIRE RESISTANCE EI 60-90

PVC-U & PVC-C Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Diameter [mm]

Pipe Wall Thickness [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

32 1.2 – 2.3 30 EI 60 (E 90) EI 60 (E 90) - -

32 2.4 – 4.6 30 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

40 1.2 – 2.3 30 EI 60 (E 90) EI 60 (E 90) - -

40 2.4 – 4.6 30 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

50 1.2 – 2.3 30 EI 60 (E 90) EI 60 (E 90) - -

50 2.4 – 4.6 30 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

55 1.3 – 4.7 30 EI 60 (E 60) EI 60 (E 60) - -

55 2.5 – 4.7 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

63 1.5 – 5.0 30 EI 60 (E 60) EI 60 (E 60) - -

63 2.5 – 5.0 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

75 1.8 – 5.4 30 EI 60 (E 60) EI 60 (E 60) - -

75 2.6 – 5.4 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

82 2.0 – 5.6 30 EI 60 (E 60) EI 60 (E 60) - -

82 2.6 – 5.6 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

90 2.2 – 5.9 30 EI 60 (E 60) EI 60 (E 60) - -

90 2.6 – 5.9 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

110 2.7 – 6.6 30 EI 60 (E 60) EI 60 (E 60) - -

110 2.7 – 6.6 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

125 2.9 – 7.4 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

140 3.0 – 8.3 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

160 3.2 – 9.5 50 EI 90 (E 90) EI 90 (E 90) - -

160 3.2 – 9.5 60 EI 90 (E 90) EI 90 (E 90) EI 60 (E 60) EI 60 (E 60)

315 9.2 75 EI 60 (E 60) - - -

≤ 8mm gaps between the pipe and the

construction

Plastic pipe

Astro PFP Pipe Closer to both sides

Gaps must be sealed with a bead of

Astro PFP FR Acrylic on both sides

Fixed with Ø 4mm wood- drywall- or masonry screws

≥ 8mm gaps between the pipe and the

construction

Gaps must be sealed with 25mm deep

Astro PFP FR Acrylic on both sides

Plastic pipe

Astro PFP Pipe Closer to both sides

Fixed with Ø 4mm wood- drywall- or masonry screws

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 3

ETA - 21/0025 CE-2531-CPR-CXO10142

≥ 100MM DRYWALLS, MASONRY OR CONCRETE WALLS

PE PLASTIC PIPES FIRE RESISTANCE EI 60-90

PE (LD-PE, MD-PE, HD-PE), ABS & SAN+PVC Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Diameter [mm]

Pipe Wall Thickness [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

32 3.0 – 5.6 30 EI 60 (E 90) EI 60 (E 90) - -

32 3.0 – 4.6 50 EI 90 (E 120) EI 90 (E 120) EI 90 (E 120) EI 90 (E 120)

40 3.0 – 5.6 30 EI 60 (E 90) EI 60 (E 90) - -

40 3.0 – 4.6 50 EI 90 (E 120) EI 90 (E 120) EI 90 (E 120) EI 90 (E 120)

50 3.0 – 5.6 30 EI 60 (E 90) EI 60 (E 90) - -

50 3.0 – 4.6 50 EI 90 (E 120) EI 90 (E 120) EI 90 (E 120) EI 90 (E 120)

55 3.0 – 6.0 30 EI 60 (E 60) EI 60 (E 60) - -

55 3.1 – 5.0 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

63 3.1 – 6.6 30 EI 60 (E 60) EI 60 (E 60) - -

63 3.1 – 5.7 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

75 3.2 – 7.5 30 EI 60 (E 60) EI 60 (E 60) - -

75 3.2 – 6.8 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

82 3.2 – 8.0 30 EI 60 (E 60) EI 60 (E 60) - -

82 3.2 – 7.4 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

90 3.3 – 8.6 30 EI 60 (E 60) EI 60 (E 60) - -

90 3.3 – 8.1 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

110 3.4 – 10.0 30 EI 60 (E 60) EI 60 (E 60) - -

110 3.4 – 10.0 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90)

125 4.2 – 9.8 50 EI 60 (E 60) EI 60 (E 60) - -

125 4.0 – 11.5 60 EI 60 (E 90) EI 60 (E 90) EI 90 (E 90) EI 60 (E 90)

140 5.1 – 9.6 50 EI 60 (E 60) EI 60 (E 60) - -

140 4.4 – 12.8 60 EI 60 (E 90) EI 60 (E 90) EI 90 (E 90) EI 60 (E 90)

160 6.2 – 9.5 50 EI 60 (E 60) EI 60 (E 60) - -

160 4.9 – 14.6 60 EI 90 (E 90) EI 90 (E 90) EI 90 (E 90) EI 90 (E 90)

200 18.2 75 EI 60 (E 60) - - -

250 22.7 75 EI 60 (E 60) - - -

≤ 8mm gaps between the pipe and the

construction

Plastic pipe

Astro PFP Pipe Closer to both sides

Gaps must be sealed with a bead of

Astro PFP FR Acrylic on both sides

Fixed with Ø 4mm wood- drywall- or masonry screws

≥ 8mm gaps between the pipe and the

construction Gaps must be sealed with 25mm deep

Astro PFP FR Acrylic on both sidesPlastic pipe

Fixed with Ø 4mm wood- drywall- or masonry screws

Astro PFP Pipe Closer to both sides

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 4

ETA - 21/0025 CE-2531-CPR-CXO10142

≥ 100MM DRYWALLS, MASONRY OR CONCRETE WALLS

PP PLASTIC PIPES FIRE RESISTANCE EI 60

PP Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Diameter [mm]

Pipe Wall Thickness [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

32 1.8 – 4.6 30 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) 32 4.7 – 5.6 30 EI 60 (E 90) EI 60 (E 90) - - 40 1.8 – 4.6 30 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) 40 4.7 – 5.6 30 EI 60 (E 90) EI 60 (E 90) - - 50 1.8 – 4.6 30 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) 50 4.7 – 5.6 30 EI 60 (E 90) EI 60 (E 90) - - 55 2.0 – 5.7 30 EI 60 (E 90) EI 60 (E 90) - - 55 2.0 – 4.7 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) 55 4.8 – 6.0 50 EI 60 (E 60) EI 60 (E 60) - - 63 2.2 – 5.8 30 EI 60 (E 90) EI 60 (E 90) - - 63 2.2 – 5.0 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) 63 5.1 – 6.6 50 EI 60 (E 60) EI 60 (E 60) - - 75 2.5 – 5.9 30 EI 60 (E 90) EI 60 (E 90) - - 75 2.5 – 5.4 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) 75 5.5 – 7.6 50 EI 60 (E 60) EI 60 (E 60) - - 82 2.7 – 6.0 30 EI 60 (E 90) EI 60 (E 90) - - 82 2.7 – 5.6 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) 82 5.7 – 8.2 50 EI 60 (E 60) EI 60 (E 60) - - 90 2.9 – 6.1 30 EI 60 (E 90) EI 60 (E 90) - - 90 2.9 – 5.9 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) 90 6.0 – 8.9 50 EI 60 (E 60) EI 60 (E 60) - -

110 3.4 – 6.3 30 EI 60 (E 90) EI 60 (E 90) - - 110 3.4 – 6.6 50 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) 110 6.7 – 10.5 50 EI 60 (E 60) EI 60 (E 60) - - 125 3.8 – 11.7 50 EI 60 (E 60) EI 60 (E 60) - - 125 3.9 – 9.0 60 EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) 140 4.2 – 12.9 50 EI 60 (E 60) EI 60 (E 60) - - 140 4.4 – 11.4 60 EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) 160 4.9 – 14.6 50 EI 60 (E 60) EI 60 (E 60) - - 160 4.9 – 14.6 60 EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) EI 60 (E 60)

≤ 8mm gaps between the pipe and the

construction

Plastic pipe

Astro PFP Pipe Closer to both sides

Gaps must be sealed with a bead of

Astro PFP FR Acrylic on both sides

Fixed with Ø 4mm wood- drywall- or masonry screws

≥ 8mm gaps between the pipe and the

construction Gaps must be sealed with 25mm deep

Astro PFP FR Acrylic on both sidesPlastic pipe

Fixed with Ø 4mm wood- drywall- or masonry screws

Astro PFP Pipe Closer to both sides

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 5

ETA - 21/0025 CE-2531-CPR-CXO10142

≥ 120MM DRYWALLS, MASONRY OR CONCRETE WALLS

PVC & PE PLASTIC PIPES FIRE RESISTANCE EI 90 - 120

≤ 8mm gaps between the pipe and the

construction

Plastic pipe

Astro PFP Pipe Closer to both sides

Gaps must be sealed with a bead of

Astro PFP FR Acrylic on both sides

Fixed with M5 drywall anchors or

masonry screws

≥ 8mm gaps between the pipe and the

construction Gaps must be sealed with 25mm deep

Astro PFP FR Acrylic on both sidesPlastic pipe

Fixed with M5 drywall anchors or

masonry screws

Astro PFP Pipe Closer to both sides

PE (LD-PE, MD-PE, HD-PE), ABS & SAN+PVC Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Diameter [mm]

Pipe Wall Thickness [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

32 3.0 – 4.6 50 EI 120 (E 120) - - - 40 3.0 – 4.6 50 EI 120 (E 120) - - - 50 3.0 – 4.6 50 EI 120 (E 120) - - - 55 3.1 – 5.0 50 EI 90 (E 120) - - - 63 3.1 – 5.7 50 EI 90 (E 120) - - - 75 3.2 – 6.8 50 EI 90 (E 120) - - - 82 3.2 – 7.5 50 EI 90 (E 120) - - - 90 3.3 – 8.2 50 EI 90 (E 120) - - -

110 3.4 – 10.0 50 EI 90 (E 120) - - - 110 3.4 50 EI 120 (E 120) - - - 125 3.9 – 9.8 60 EI 90 (E 90) - - - 140 4.4 – 9.7 60 EI 90 (E 90) - - - 160 4.9 – 9.5 60 EI 90 (E 90) - - - 160 9.5 60 EI 120 (E 120) - - -

PVC-U & PVC-C Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Diameter [mm]

Pipe Wall Thickness [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

32 2.4 – 3.7 50 EI 120 (E 120) - - - 40 2.4 – 3.7 50 EI 120 (E 120) - - - 50 2.4 – 3.7 50 EI 120 (E 120) - - - 55 2.4 – 3.9 50 EI 120 (E 120) - - - 63 2.5 – 4.3 50 EI 120 (E 120) - - - 75 2.5 – 4.9 50 EI 120 (E 120) - - - 82 2.6 – 5.2 50 EI 120 (E 120) - - - 90 2.6 – 5.6 50 EI 120 (E 120) - - -

110 2.7 – 6.6 50 EI 120 (E 120) - - - 125 3.1 – 7.5 60 EI 120 (E 120) - - - 140 3.5 – 8.4 60 EI 120 (E 120) - - - 160 4.0 – 9.5 60 EI 120 (E 120) - - -

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 6

ETA - 21/0025 CE-2531-CPR-CXO10142

≥ 120MM DRYWALLS, MASONRY OR CONCRETE WALLS

PP PLASTIC PIPES FIRE RESISTANCE EI 90 - 120

PP Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Diameter [mm]

Pipe Wall Thickness [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

32 2.9 – 4.6 50 EI 120 (E 120) - - - 40 2.9 – 4.6 50 EI 120 (E 120) - - - 50 2.9 – 4.6 50 EI 120 (E 120) - - - 55 2.9 – 5.0 50 EI 90 (E 120) - - - 63 2.9 – 5.7 50 EI 90 (E 120) - - - 75 2.8 – 6.8 50 EI 90 (E 120) - - - 82 2.8 – 7.5 50 EI 90 (E 120) - - - 90 2.8 – 8.2 50 EI 90 (E 120) - - -

110 2.7 – 10.0 50 EI 90 (E 120) - - - 125 3.3 – 11.3 60 EI 90 (E 120) - - - 140 4.0 – 12.8 60 EI 90 (E 120) - - - 160 4.9 – 14.6 60 EI 120 (E 120) - - -

≤ 8mm gaps between the pipe and the

construction

Plastic pipe

Astro PFP Pipe Closer to both sides

Gaps must be sealed with a bead of

Astro PFP FR Acrylic on both sides

Fixed with M5 drywall anchors or

masonry screws

≥ 8mm gaps between the pipe and the

construction

Gaps must be sealed with 25mm deep

Astro PFP FR Acrylic on both sides

Plastic pipe

Astro PFP Pipe Closer to both sides

Fixed with M5 drywall anchors or

masonry screws

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 7

ETA - 21/0025 CE-2531-CPR-CXO10142

≥ 100MM DRYWALLS, MASONRY OR CONCRETE WALLS

COMPOSITE PLASTIC PIPES FIRE RESISTANCE EI 60 - 120

Composite Plastic Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Pipe Diameter [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

Aquatherm Green SDR9

32 30 EI 120 (E 120) - - - 40 – 50 50 EI 120 (E 120) - - -

63 – 110 50 EI 60 (E 120) - - -

BluePower

32 – 50 50 EI 90 (E 120) EI 90 (E 120) EI 90 (E 120) EI 90 (E 120) 75 – 110 50 EI 60 (E 120) EI 60 (E 120) EI 60 (E 120) -

125 60 EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) - 160 60 EI 90 (E 90) EI 90 (E 90) EI 90 (E 90) -

Geberit Silent- PP

32 – 50 50 EI 120 (E 120) EI 120 (E 120) EI 120 (E 120) EI 120 (E 120) 75 – 110 50 EI 60 (E 120) EI 60 (E 120) EI 60 (E 120) EI 60 (E 120)

Polo-Kal NG pipes

32 – 50 50 EI 120 (E 120) EI 120 (E 120) EI 120 (E 120) EI 120 (E 120) 75 – 110 50 EI 90 (E 120) EI 90 (E 120) EI 90 (E 120) EI 90 (E 120)

125 60 EI 120 (E 120) EI 120 (E 120) (E 120) (E 120) 160 60 EI 120 (E 120) EI 120 (E 120) EI 120 (E 120) EI 120 (E 120)

Rehau Raupiano Plus

40 – 50 50 EI 90 (E 120) EI 90 (E 120) EI 90 (E 120) EI 90 (E 120) 75 – 110 50 EI 60 (E 120) EI 60 (E 120) EI 60 (E 120) EI 60 (E 120)

125 – 160 60 EI 120 (E 120) EI 120 (E 120) EI 120 (E 120) EI 120 (E 120)

Wavin SiTech 32 – 50 50 EI 120 (E 120) EI 120 (E 120) EI 120 (E 120) EI 120 (E 120)

75 – 110 50 EI 60 (E 120) EI 60 (E 120) EI 60 (E 120) EI 60 (E 120)

≤ 8mm gaps between the pipe and the

construction

Plastic pipe

Astro PFP Pipe Closer to both sides

Gaps must be sealed with a bead of

Astro PFP FR Acrylic on both sides

Fixed with Ø 4mm wood- drywall- or masonry screws

≥ 8mm gaps between the pipe and the

construction

Gaps must be sealed with 25mm deep

Astro PFP FR Acrylic on both sides

Plastic pipe

Astro PFP Pipe Closer to both sides

Fixed with Ø 4mm wood- drywall- or masonry screws

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 8

ETA - 21/0025 CE-2531-CPR-CXO10142

≥ 100MM DRYWALLS, MASONRY OR CONCRETE WALLS EMPTY HOLE FIRE RESISTANCE EI 60 (E 120)

Maximum aperture Ø 110mm

≤ Ø110mm Astro PFP Pipe Closer at ≥ 30mm

height to both sides

Hole must be plugged with 25mm deep stone wool on

both sides

Fixed with Ø4mm wood- drywall- or masonry screws

≥ 100MM DRYWALLS, MASONRY OR CONCRETE WALLS CABLE BUNDLE FIRE RESISTANCE EI 60 (E 120)

≤ 10mm gaps between the bundle and the construction

≤ Ø110mm Astro PFP Pipe Closer at ≥ 30mm

height to both sides

Gaps must be sealed with a bead of

Astro PFP FR Acrylic on both sides

Fixed with Ø4mm wood- drywall- or masonry screws

≥ 100MM DRYWALLS, MASONRY OR CONCRETE WALLS CABLE BUNDLE FIRE RESISTANCE EI 60 (E 120)

Cables ≤ Ø21mm in a bundle ≤ Ø110mm

≤ 10mm gaps between the bundle and the construction

≤ Ø160mm Astro PFP Pipe Closer at ≥ 60mm

height to both sides

Gaps must be sealed with a bead of

Astro PFP FR Acrylic on both sides

Fixed with Ø4mm wood- drywall- or masonry screws

Cables ≤ Ø80mm in a bundle ≤ Ø160mm

≥ 100MM DRYWALLS, MASONRY OR CONCRETE WALLS EMPTY HOLE FIRE RESISTANCE EI 120 (E 120)

Maximum aperture Ø 160mm

Ø160mm Astro PFP Pipe Closer at 60mm

height to both sides

Hole must be plugged with 25mm deep stone wool on

both sides

Fixed with Ø4mm wood- drywall- or masonry screws

≥ 100MM DRYWALLS, MASONRY OR CONCRETE WALLS CABLE BUNDLE FIRE RESISTANCE EI 60 (E 120)

≤ 10mm gaps between the bundle and the construction

≤ Ø110mm Astro PFP Pipe Closer at ≥ 50mm

height to both sides

Gaps must be sealed with a bead of

Astro PFP FR Acrylic on both sides

Fixed with Ø4mm wood- drywall- or masonry screws

Cables ≤ Ø80mm in a bundle ≤ Ø110mm

≥ 100MM DRYWALLS, MASONRY OR CONCRETE WALLS PEX PIPE-IN-PIPES FIRE RESISTANCE EI 90 C/C (E 120)

≤ 10mm gaps between the bundle and the construction

≤ Ø55mm Astro PFP Pipe Closer at ≥ 30mm

height to both sides

Gaps must be sealed with a bead of

Astro PFP FR Acrylic on both sides

Fixed with Ø4mm wood- drywall- or masonry screws

PEX pipes ≤ Ø25mm in a

bundle ≤ Ø55mm

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 9

ETA - 21/0025 CE-2531-CPR-CXO10142

≥ 100MM DRYWALLS, MASONRY OR CONCRETE WALLS COPPER OR STEEL PIPE FIRE RESISTANCE EI 90 C/C (E 120)

Copper or steel on pipe Ø54mm

Ø110mm Astro PFP Pipe Closer at 50mm height to

both sides

Gaps must be sealed with a bead of Astro

PFP FR Acrylic on both sides

Fixed with Ø4mm wood- drywall- or masonry screws

≥ 100MM DRYWALLS, MASONRY OR CONCRETE WALLS COPPER OR STEEL PIPE FIRE RESISTANCE EI 60 C/C (E 120)

19mm continuous elastomeric insulation

Ø110mm Astro PFP Pipe Closer at 50mm height to

both sides

Gaps must be sealed with a bead of Astro

PFP FR Acrylic on both sides

Fixed with Ø4mm wood- drywall- or masonry screws

25mm continuous phenolic insulation

Copper or steel on pipe Ø54mm

≥ 100MM DRYWALLS, MASONRY OR CONCRETE WALLS COPPER OR STEEL PIPE FIRE RESISTANCE EI 90 C/C (E 120)

Copper or steel on pipe Ø54mm

Ø110mm Astro PFP Pipe Closer at 50mm height to

both sides

Gaps must be sealed with a bead of Astro

PFP FR Acrylic on both sides

Fixed with Ø4mm wood- drywall- or masonry screws

20mm continuous elastomeric insulation

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 10

ETA - 21/0025 CE-2531-CPR-CXO10142

≥ 150MM MASONRY OR CONCRETE WALLS

PVC & PE PLASTIC PIPES FIRE RESISTANCE EI 60 - 240

≤ 8mm gaps between the pipe and the

construction

Plastic pipe

Astro PFP Pipe Closer to both sides

Gaps must be sealed with a bead of

Astro PFP FR Acrylic on both sides

Fixed with Ø 4mm masonry screws

PVC-U & PVC-C Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Diameter [mm]

Pipe Wall Thickness [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

32 2.0 – 3.7 50 EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) 40 2.0 – 3.7 50 EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) 50 2.0 – 3.7 50 EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) 55 2.1 – 3.9 50 EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) 63 2.2 – 4.3 50 EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) 75 2.3 – 4.9 50 EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) 82 2.4 – 5.2 50 EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) 90 2.5 – 5.6 50 EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) EI 180 (E 180)

110 2.7 – 6.6 50 EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) 125 3.1 – 7.5 60 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) 140 3.5 – 8.4 60 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) 160 4.0 – 9.5 60 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) 315 9.2 75 EI 120 (E 120) - - -

PE (LD-PE, MD-PE, HD-PE), ABS & SAN+PVC Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Diameter [mm]

Pipe Wall Thickness [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

32 3.0 – 4.6 50 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) 40 3.0 – 4.6 50 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) 50 3.0 – 4.6 50 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) 55 3.1 – 4.5 50 EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) 63 3.1 – 4.3 50 EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) 75 3.2 – 4.1 50 EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) 82 3.3 – 3.9 50 EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) 90 3.3 – 3.8 50 EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) EI 180 (E 240)

110 3.4 50 EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) 125 3.9 – 5.2 60 EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) 140 4.3 – 7.0 60 EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) 160 4.9 – 9.5 60 EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) 200 18.2 75 EI 60 (E 60) - - - 250 22.7 75 EI 90 (E 120) - - -

≥ 8mm gaps between the pipe and the

construction

Plastic pipe

Gaps must be sealed with 20mm deep

Astro PFP FR Acrylic on 20mm deep

stone wool backing on both sides

Fixed with Ø 4mm masonry screws

Astro PFP Pipe Closer to both sides

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 11

ETA - 21/0025 CE-2531-CPR-CXO10142

≥ 150MM MASONRY OR CONCRETE WALLS

PP PLASTIC PIPES FIRE RESISTANCE EI 60 - 240

≤ 8mm gaps between the pipe and the

construction

Plastic pipe

Gaps must be sealed with a bead of

Astro PFP FR Acrylic on both sides

Fixed with Ø 4mm masonry screws

PP Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Diameter [mm]

Pipe Wall Thickness [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

32 1.6 – 5.5 30 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) 40 1.6 – 5.5 30 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) 50 1.6 – 5.5 30 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) 55 1.7 – 5.6 50 EI 240 (E 240) EI 240 (E 240) EI 90 (E 240) EI 90 (E 240) 55 5.7 – 5.9 50 EI 240 (E 240) EI 240 (E 240) EI 60 (E 240) EI 60 (E 240) 63 1.8 – 5.7 50 EI 240 (E 240) EI 240 (E 240) EI 90 (E 240) EI 90 (E 240) 63 5.8 – 6.5 50 EI 240 (E 240) EI 240 (E 240) EI 60 (E 240) EI 60 (E 240) 75 2.0 – 5.9 50 EI 240 (E 240) EI 240 (E 240) EI 90 (E 240) EI 90 (E 240) 75 6.0 – 7.3 50 EI 240 (E 240) EI 240 (E 240) EI 60 (E 240) EI 60 (E 240) 82 2.1 – 6.0 50 EI 240 (E 240) EI 240 (E 240) EI 90 (E 240) EI 90 (E 240) 82 6.1 – 7.9 50 EI 240 (E 240) EI 240 (E 240) EI 60 (E 240) EI 60 (E 240) 90 2.3 – 6.1 50 EI 240 (E 240) EI 240 (E 240) EI 90 (E 240) EI 90 (E 240) 90 6.2 – 8.5 50 EI 240 (E 240) EI 240 (E 240) EI 60 (E 240) EI 60 (E 240)

110 2.7 – 6.3 50 EI 240 (E 240) EI 240 (E 240) EI 90 (E 240) EI 90 (E 240) 110 6.4 – 10.0 50 EI 240 (E 240) EI 240 (E 240) EI 60 (E 240) EI 60 (E 240) 125 3.3 – 11.4 60 EI 180 (E 240) EI 180 (E 240) EI 60 (E 240) EI 60 (E 240) 140 4.0 – 12.8 60 EI 180 (E 240) EI 180 (E 240) EI 60 (E 240) EI 60 (E 240) 160 4.9 – 14.6 60 EI 180 (E 240) EI 180 (E 240) EI 180 (E 240) EI 180 (E 240)

≥ 8mm gaps between the pipe and the

construction

Plastic pipe

Astro PFP Pipe Closer to both sides

Gaps must be sealed with 20mm deep

Astro PFP FR Acrylic on 20mm deep

stone wool backing on both sides

Fixed with Ø 4mm masonry screws

Astro PFP Pipe Closer to both sides

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 12

ETA - 21/0025 CE-2531-CPR-CXO10142

RIGID FLOORS

PVC PLASTIC PIPES FIRE RESISTANCE EI 60 - 120

≤ 10mm gaps between the pipe and the

construction

Plastic pipe

Any gaps must be plugged with 20mm deep stone wool

from soffit side

Fixed with Ø 4mm masonry screws

PVC-U & PVC-C Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Diameter [mm]

Pipe Wall Thickness [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

32 1.9 – 3.7 30 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) 32 2.0 – 3.7 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 90) EI 60 (E 90) 40 1.9 – 3.7 30 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) 40 2.0 – 3.7 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 90) EI 60 (E 90) 50 2.0 – 3.7 30 EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) EI 60 (E 90) 50 2.0 – 3.7 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 90) EI 60 (E 90) 55 2.1 – 3.9 30 EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) 55 2.1 – 2.3 50 EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) 55 2.4 – 3.9 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 63 2.2 – 4.3 30 EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) 63 2.2 – 2.9 50 EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) 63 3.0 – 4.3 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 75 2.5 – 4.9 30 EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) 75 2.3 – 3.7 50 EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) - 75 3.8 – 4.8 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 82 2.6 – 5.2 30 EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) 82 2.4 – 4.2 50 EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) - 82 4.3 – 5.1 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 90 2.8 – 5.6 30 EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) 90 2.5 – 4.8 50 EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) - 90 4.9 – 5.4 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60)

110 3.2 – 6.6 30 EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) 110 2.7 – 6.3 50 EI 120 (E 120) EI 90 (E 120) EI 60 (E 60) - 125 2.9 – 7.6 50 EI 90 (E 120) EI 90 (E 120) - - 125 3.2 – 5.5 60 EI 90 (E 120) EI 90 (E 120) EI 60 (E 60) EI 60 (E 60) 125 5.6 – 7.3 60 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 140 3.0 – 8.4 50 EI 90 (E 120) EI 90 (E 120) - - 140 3.2 – 4.9 60 EI 90 (E 120) EI 90 (E 120) EI 60 (E 60) EI 60 (E 60) 140 5.0 – 8.2 60 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 160 3.2 – 9.5 50 EI 90 (E 180) EI 90 (E 180) - - 160 3.2 – 3.9 60 EI 90 (E 180) EI 90 (E 180) EI 60 (E 60) EI 60 (E 60) 160 4.0 – 9.5 60 EI 120 (E 180) EI 120 (E 180) EI 60 (E 60) EI 60 (E 60) 200 4.9 – 11.9 60 EI 60 (E 120) - - - 250 6.1 – 11.9 75 EI 60 (E 60) - - - 315 7.7 – 12.1 75 EI 60 (E 60) - - - 400 15.3 100 EI 60 (E 60) - - -

≥ 10mm gaps between the pipe and the

construction

Plastic pipe

Gaps must be sealed with 10mm deep Astro PFP FR

Acrylic on 40mm deep stone wool backing from soffit side

Fixed with Ø 4mm masonry screws

Some additional pipe wall thicknesses can be found in the ETA on pages 50 and 54.to both sides

Astro PFP Pipe Closer on soffit side

Astro PFP Pipe Closer on soffit side

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 13

ETA - 21/0025 CE-2531-CPR-CXO10142

RIGID FLOORS

PE PLASTIC PIPES FIRE RESISTANCE EI 60 - 120

≤ 10mm gaps between the pipe and the

construction

Plastic pipe Any gaps must be plugged with 20mm deep stone

wool from soffit side

Fixed with Ø 4mm masonry screws

PE (LD-PE, MD-PE, HD-PE), ABS & SAN+PVC Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Diameter [mm]

Pipe Wall Thickness [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

32 3.0 – 4.6 30 EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) 32 3.0 – 4.6 50 EI 240 (E 240) EI 240 (E 240) EI 60 (E 60) EI 60 (E 60) 32 3.0 50 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) 40 3.0 – 4.6 30 EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) 40 3.0 – 4.6 50 EI 240 (E 240) EI 240 (E 240) EI 60 (E 60) EI 60 (E 60) 40 3.0 50 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) 50 3.0 – 4.6 30 EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) 50 3.0 – 4.6 50 EI 240 (E 240) EI 240 (E 240) EI 60 (E 60) EI 60 (E 60) 50 3.0 50 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) 55 3.0 – 5.2 30 EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) EI 60 (E 60) 55 3.1 – 5.0 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 63 3.0 – 5.9 30 EI 60 (E 60) EI 60 (E 60) - - 63 3.1 – 5.8 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 75 3.1 – 6.9 30 EI 60 (E 60) EI 60 (E 60) - - 75 3.2 – 6.9 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 82 3.1 – 7.6 30 EI 60 (E 60) EI 60 (E 60) - - 82 3.3 – 7.5 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 90 3.2 – 8.3 30 EI 60 (E 60) EI 60 (E 60) - - 90 3.3 – 8.2 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60)

110 3.4 – 9.9 30 EI 60 (E 60) EI 60 (E 60) - - 110 10.0 30 EI 180 (E 180) EI 180 (E 180) - - 110 3.4 – 10.0 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 125 3.9 – 11.3 50 EI 120 (E 120) EI 120 (E 120) - - 125 3.9 – 11.3 60 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 140 4.3 – 12.7 50 EI 120 (E 120) EI 120 (E 120) - - 140 4.3 – 12.7 60 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 160 4.9 – 14.7 50 EI 120 (E 180) EI 120 (E 180) - - 160 4.9 – 14.6 60 EI 120 (E 180) EI 120 (E 180) EI 60 (E 60) EI 60 (E 60) 200 6.2 – 18.2 60 EI 120 (E 240) - - - 250 11.5 – 18.4 75 EI 240 (E 240) - - - 315 18.7 75 EI 240 (E 240) - - - 400 36.3 100 EI 90 (E 90) - - -

≥ 10mm gaps between the pipe and the

construction

Plastic pipe

Gaps must be sealed with 10mm deep Astro PFP FR

Acrylic on 40mm deep stone wool backing from soffit side

Fixed with Ø 4mm masonry screws

Astro PFP Pipe Closer on soffit side

Astro PFP Pipe Closer on soffit side

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 14

ETA - 21/0025 CE-2531-CPR-CXO10142

RIGID FLOORS

PP PLASTIC PIPES FIRE RESISTANCE EI 30 - 240

≤ 10mm gaps between the pipe and the

construction

Plastic pipe Any gaps must be plugged with 20mm deep stone

wool from soffit side

Fixed with Ø 4mm masonry screws

PP Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Diameter [mm]

Pipe Wall Thickness [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

32 1.8 – 4.6 30 EI 120 (E 120) EI 120 (E 120) EI 120 (E 120) EI 120 (E 120) 40 1.8 – 4.6 30 EI 120 (E 120) EI 120 (E 120) EI 120 (E 120) EI 120 (E 120) 50 1.8 – 4.6 30 EI 120 (E 120) EI 120 (E 120) EI 120 (E 120) EI 120 (E 120) 50 2.9 50 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) 55 1.9 – 4.8 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 55 4.9 – 5.1 50 EI 60 (E 60) EI 60 (E 60) - - 63 2.0 – 5.0 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 63 5.1 – 5.8 50 EI 60 (E 60) EI 60 (E 60) - - 75 2.2 – 5.4 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 75 5.5 – 6.9 50 EI 60 (E 60) EI 60 (E 60) - - 82 2.3 – 5.6 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 82 5.7 – 7.5 50 EI 60 (E 60) EI 60 (E 60) - - 90 2.4 – 5.9 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 90 6.0 – 8.2 50 EI 60 (E 60) EI 60 (E 60) - -

110 2.7 – 6.6 50 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 110 6.7 – 10.1 50 EI 60 (E 60) EI 60 (E 60) - - 125 4.7 – 11.4 50 EI 60 (E 60) EI 60 (E 60) - - 125 3.4 – 3.5 60 EI 120 (E 120) EI 120 (E 120) - - 125 3.6 – 8.9 60 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 140 6.8 – 12.8 50 EI 60 (E 60) EI 60 (E 60) - - 140 4.1 – 4.6 60 EI 120 (E 120) EI 120 (E 120) - - 140 4.7 – 11.2 60 EI 120 (E 120) EI 120 (E 120) EI 60 (E 60) EI 60 (E 60) 160 9.5 – 14.6 50 EI 60 (E 60) EI 60 (E 60) - - 160 4.9 – 6.1 60 EI 180 (E 180) EI 180 (E 180) - - 160 6.2 – 14.6 60 EI 180 (E 180) EI 180 (E 180) EI 60 (E 60) EI 60 (E 60) 160 6.2 60 EI 180 (E 180) EI 180 (E 180) EI 90 (E 90) EI 90 (E 90) 200 4.9 – 18.2 60 EI 120 (E 120) - - - 250 15.1 – 22.7 75 EI 60 (E 60) - - - 315 28.6 75 EI 60 (E 60) - - - 400 9.8 – 22.7 100 EI 30 (E 30) - - -

≥ 10mm gaps between the pipe and the

construction

Plastic pipe

Gaps must be sealed with 10mm deep Astro PFP FR

Acrylic on 40mm deep stone wool backing from soffit side

Fixed with Ø 4mm masonry screws

Additional pipe wall thicknesses can be found in the ETA on page 65.

Astro PFP Pipe Closer on soffit side

Astro PFP Pipe Closer on soffit side

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 15

ETA - 21/0025 CE-2531-CPR-CXO10142

RIGID FLOORS

PVC & PE PLASTIC PIPES FIRE RESISTANCE EI 60 - 240

≤ 10mm gaps between the pipe and the

construction Plastic pipe

Astro PFP Pipe Closer on the top side

Gaps must be sealed with a bead of Astro PFP FR Acrylic

on top of the closer

Fixed with Ø 4mm masonry screws

PVC-U & PVC-C Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Diameter [mm]

Pipe Wall Thickness [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

32 1.9 – 3.7 50 EI 240 (E 240) EI 240 (E 240) - - 40 1.9 – 3.7 50 EI 240 (E 240) EI 240 (E 240) - - 50 1.9 – 3.7 50 EI 240 (E 240) EI 240 (E 240) - - 55 2.0 – 4.0 50 EI 120 (E 120) EI 120 (E 120) - - 63 2.1 – 4.4 50 EI 120 (E 120) EI 120 (E 120) - - 75 2.4 – 5.0 50 EI 120 (E 120) EI 120 (E 120) - - 82 2.5 – 5.3 50 EI 120 (E 120) EI 120 (E 120) - - 90 2.7 – 5.7 50 EI 120 (E 120) EI 120 (E 120) - -

110 3.2 – 6.6 50 EI 120 (E 120) EI 120 (E 120) - - 125 5.0 – 7.5 60 EI 180 (E 240) EI 180 (E 240) - - 140 6.9 – 8.3 60 EI 180 (E 240) EI 180 (E 240) - - 160 9.5 60 EI 180 (E 240) EI 180 (E 240) - -

PE (LD-PE, MD-PE, HD-PE), ABS & SAN+PVC Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Diameter [mm]

Pipe Wall Thickness [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

32 3.0 – 4.6 50 EI 240 (E 240) EI 240 (E 240) - - 40 3.0 – 4.6 50 EI 240 (E 240) EI 240 (E 240) - - 50 3.0 – 4.6 50 EI 240 (E 240) EI 240 (E 240) - - 55 3.0 – 5.1 50 EI 60 (E 240) EI 60 (E 240) - - 63 3.0 – 5.8 50 EI 60 (E 240) EI 60 (E 240) - - 75 3.1 – 6.9 50 EI 60 (E 240) EI 60 (E 240) - - 82 3.2 – 7.5 50 EI 60 (E 240) EI 60 (E 240) - - 90 3.2 – 8.2 50 EI 60 (E 240) EI 60 (E 240) - -

110 3.4 – 10.0 50 EI 60 (E 240) EI 60 (E 240) - - 125 5.2 – 9.9 60 EI 60 (E 60) EI 60 (E 60) - - 140 7.0 – 9.7 60 EI 60 (E 60) EI 60 (E 60) - - 160 9.5 60 EI 60 (E 60) EI 60 (E 60) - -

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 16

ETA - 21/0025 CE-2531-CPR-CXO10142

RIGID FLOORS

PP PLASTIC PIPES FIRE RESISTANCE EI 60 - 180

≤ 10mm gaps between the pipe and the

construction Plastic pipe

Gaps must be sealed with a bead of Astro PFP FR Acrylic

on top of the closer

Fixed with Ø 4mm masonry screws

PP Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Diameter [mm]

Pipe Wall Thickness [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

32 2.9 – 4.6 50 EI 180 (E 240) EI 180 (E 240) - - 40 2.9 – 4.6 50 EI 180 (E 240) EI 180 (E 240) - - 50 2.9 – 4.6 50 EI 180 (E 240) EI 180 (E 240) - - 55 3.5 – 5.1 50 EI 90 (E 180) EI 90 (E 180) - - 63 4.4 – 5.8 50 EI 90 (E 180) EI 90 (E 180) - - 75 5.8 – 6.9 50 EI 90 (E 180) EI 90 (E 180) - - 82 6.6 – 7.5 50 EI 90 (E 180) EI 90 (E 180) - - 90 7.5 – 8.2 50 EI 90 (E 180) EI 90 (E 180) - -

110 10.0 50 EI 90 (E 180) EI 90 (E 180) - - 125 11.3 60 EI 60 (E 240) EI 60 (E 240) - - 140 12.7 60 EI 60 (E 240) EI 60 (E 240) - - 160 14.6 60 EI 60 (E 240) EI 60 (E 240) - -

Astro PFP Pipe Closer on the top side

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 17

ETA - 21/0025 CE-2531-CPR-CXO10142

RIGID FLOORS

COMPOSITE PLASTIC PIPES FIRE RESISTANCE EI 60 - 240

≤ 10mm gaps between the pipe and the

construction

Plastic pipe

Astro PFP Pipe Closer

on soffit side

Any gaps must be plugged with 20mm deep stone wool

from soffit side

Fixed with Ø 4mm masonry screws

≥ 10mm gaps between the pipe and the

construction

Plastic pipe

Gaps must be sealed with 10mm deep Astro PFP FR

Acrylic on 40mm deep stone wool backing from soffit side

Fixed with Ø 4mm masonry screws

Composite Plastic Pipes

Pipe & Closer Descriptions Fire Classifications

Pipe Pipe Diameter [mm]

Minimum Closer Height [mm]

C/C U/C C/U U/U

Aquatherm Green SDR9

32 30 EI 240 (E 240) - - - 40 – 50 50 EI 240 (E 240) - - -

63 – 110 50 EI 120 (E 120) - - -

BluePower

32 – 50 50 EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) 75 – 110 50 EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) -

125 60 EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) - 160 60 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) -

Geberit Silent- PP

32 – 50 50 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) 75 – 110 50 EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) -

Polo-Kal NG pipes

32 – 50 50 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) 75 – 110 50 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) -

125 60 EI 240 (E 240) EI 240 (E 240) - - 160 60 EI 240 (E 240) EI 240 (E 240) (E 240) -

Rehau Raupiano Plus

40 – 50 50 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) 75 – 110 50 EI 120 (E 120) EI 120 (E 120) EI 120 (E 120) -

125 60 EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) - 160 60 EI 240 (E 240) EI 240 (E 240) (E 240) -

Wavin SiTech 32 – 50 50 EI 240 (E 240) EI 240 (E 240) EI 240 (E 240) EI 240 (E 240)

75 – 110 50 EI 180 (E 180) EI 180 (E 180) EI 180 (E 180) -

Astro PFP Pipe Closer

on soffit side

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 18

ETA - 21/0025 CE-2531-CPR-CXO10142

RIGID FLOORS EMPTY HOLE FIRE RESISTANCE EI 60 (E 240)

Maximum aperture Ø 55mm

Ø55mm Astro PFP Pipe Closer at ≥ 30mm

height on the soffit side

Hole must be plugged with 25mm deep stone wool on

the soffit side

Fixed with Ø4mm masonry screws

RIGID FLOORS CABLE BUNDLE FIRE RESISTANCE EI 120 (E 120)

RIGID FLOORS CABLE BUNDLE FIRE RESISTANCE EI 180 (E 180)

RIGID FLOORS EMPTY HOLE FIRE RESISTANCE EI 120 (E 120)

RIGID FLOORS CABLE BUNDLE FIRE RESISTANCE EI 90 (E 90)

RIGID FLOORS COPPER OR STEEL PIPE FIRE RESISTANCE EI 60 C/C (E 240)

Maximum aperture Ø 160mm

Ø160mm Astro PFP Pipe Closer at 60mm

height on the soffit side

Hole must be plugged with 25mm deep stone wool on

the soffit side

Fixed with Ø4mm masonry screws

≤ 10mm gaps between the bundle and the construction

≤ Ø55mm Astro PFP Pipe Closer at

≥ 30mm height to the soffit side

Gaps must be sealed with a bead of

Astro PFP FR Acrylic on the soffit side

Fixed with Ø4mm masonry screws

Cables ≤ Ø21mm in a bundle ≤ Ø55mm

≤ 10mm gaps between the bundle and the construction

≤ Ø110mm Astro PFP Pipe Closer at

≥ 50mm height to the soffit side

Gaps must be sealed with a bead of

Astro PFP FR Acrylic on the soffit side

Fixed with Ø4mm masonry screws

Cables ≤ Ø21mm in a bundle ≤ Ø100mm

≤ 10mm gaps between the bundle and the construction

≤ Ø160mm Astro PFP Pipe Closer at

≥ 60mm height to the soffit side

Gaps must be sealed with a bead of

Astro PFP FR Acrylic on the soffit side

Fixed with Ø4mm masonry screws

Cables ≤ Ø21mm in a bundle ≤ Ø160mm

Copper or steel pipe Ø54mm

Ø110mm Astro PFP Pipe Closer at

50mm height to the soffit side

Gaps must be sealed with a bead of

Astro PFP FR Acrylic on the soffit side

19mm continuous elastomeric insulation

Fixed with Ø4mm masonry screws

E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

P A S S I V E F I R E S T O P S Y S T E M S

Page 19

ETA - 21/0025 CE-2531-CPR-CXO10142

As part of our policy of ongoing improvements, we reserve the right to modify, alter or change product specifications without giving notice. Product illustrations are representations only. All information contained in this document is provided for guidance only, and as ASTROFLAME (FIRE SEALS) LTD has no control over the specific application or installation methods of the products, or of the prevailing site conditions, no warranties expressed or implied are intended to be given as to the actual performance of the products mentioned or referred to, and no liability whatsoever will be accepted for any loss, damage or injury arising from the use of the information given of products mentioned or referred to herein.

The above information to the best of our knowledge is true and accurate and based upon current test data and is supplied for your guidance only. Customers should satisfy themselves to the suitability of the product based on the products limitation of applications and that the product is fit for purpose for their intended use and no guarantee is given or implied since the conditions of actual use are beyond our control. ASTROFLAME (FIRE SEALS) LTD, disclaim any liability for loss, damage or other expense arising from the use of information, data or products mentioned or referred to and reserve the right to change any details or specifications without notice. If you are in any doubt as to the suitability of this product for your intended application please contact our technical team on 01329 844500 or email [email protected] and we will contact you.

Astroflame (Fireseals) LTD : Unit 8 , I.O Centre : Stephenson Road : Segensworth : Fareham : PO15 5RU T - 01329 844500 : F - 01329 844600 : W - www.astroflame.com : E - [email protected]

Product Data Sheet

Astro Intu Mastic

UIC of product-type: INTUM

Revision 12 - 16th March 2021

ETA 20-1088/20-1089 CE-2812-CPR-JA5015

ETA - 20-1088 - ETA - 20-1089 CE-2812-CPR-JA5015

Page 1 E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

Product Description

Astro Intu Mastic Intumescent Acoustic Mastic

• CE Marked.

• Certifire Approved.

• ULEU Accreditation.

• Fire resistance tested in flexible walls, rigid walls and floors.

• Tested in Linear Joints up to 50mm wide.

• Tested in large service openings up to 490 x 150mm.

• Tested with Metallic Pipes, Cables, Cable Bunches, Cable Trays and Cable Ladders.

• For use in low movement joints, remains flexible.

• Halogen free, resists fungi and vermin.

• Shelf Life 18 months.

• Tested in accordance with EN1366-3:2009 - Fire Resistance - Penetration Seals.

• Tested in accordance with EN1366-4:2009 - Fire Resistance - Linear Seals.

• Classified in accordance with EN13501-2 - Fire Resistance.

• Tested in accordance with EN10140-2:2010 - Airborne Sound.

• Tested in accordance with EN1026:2000 - Air Permeability.

Astro Intu Mastic is a water based acrylic sealant used to reinstate the fire resistance of wall and floor constructions in linear joints and where apertures are penetrated by multiple services. Astro Intu Mastic Fire Resistant Sealant has been developed utilising specialist polymer technologies allowing it to be tested and Certified to internationally recognised standards, including, Certifire, CE marking and UL Listings. Astro Intu Mastic Fire Resistant has been tested and Certified as part the Astroflame Fire Stopping range. The Astro Intu Mastic system can be installed across a variety services and substrates including,

• Flexible and Rigid Walls • Rigid Floors • Multi-Service penetrations • Blank Openings • Head of Walls • Astro Batt

ETA - 20-1088 - ETA - 20-1089 CE-2812-CPR-JA5015

Page 2 E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

Properties

General Characteristics Inspection Method Value Product Data (uncured) Density (S.G) ASTM D792:13 1.63 Appearance Paste, matt finish Resistance to flow ISO 7390 : 2003 Pass Product Data (after curing) Hardness Shore A ISO 7619-1 : 2010 63/39 Movement Capability 7.5% Operating Temperature oC -5 to 40 Loss Mass of Mass on Heating ISO 3451-1 (Method A) 68.34 Flexibility - Bend Test ISO 1519 Pass Conditioning EOTA TR024 Type X

Product Availability

The Astro intu Mastic Comes in Three Colours - White , Brown & Grey in Both 310ml Cartridge & 600ml Foils

Product Code Product Description Size AFIM Astro Mastic White 310ml

AFIMB Astro Mastic Brown 310ml AFIMG Astro Mastic Grey 310ml

AFIMWFOIL Astro Mastic White - Foil 600ml

To Order & Specify

Please contact us and quote the following information - Quantity / Product Code / Product Description / sizes Typical example:- 10 / AFIM / Astro Mastic White / 310ml

>> Tel: 01329 844 500 or >> Email: [email protected]

600ml Foils in a Brown or Grey colour available P.O.A

ETA - 20-1088 - ETA - 20-1089 CE-2812-CPR-JA5015

Page 3 E - [email protected] - www.astroflame.comF - 01329 844600 T - 01329 844500

As part of our policy of ongoing improvements, we reserve the right to modify, alter or change product specifications without giving notice. Product illustrations are representations only. All information contained in this document is provided for guidance only, and as ASTROFLAME (FIRE SEALS) LTD has no control over the specific application or installation methods of the products, or of the prevailing site conditions, no warranties expressed or implied are intended to be given as to the actual performance of the products mentioned or referred to, and no liability whatsoever will be accepted for any loss, damage or injury arising from the use of the information given of products mentioned or referred to herein.

The above information to the best of our knowledge is true and accurate and based upon current test data and is supplied for your guidance only. Customers should satisfy themselves to the suitability of the product based on the products limitation of applications and that the product is fit for purpose for their intended use and no guarantee is given or implied since the conditions of actual use are beyond our control. ASTROFLAME (FIRE SEALS) LTD, disclaim any liability for loss, damage or other expense arising from the use of information, data or products mentioned or referred to and reserve the right to change any details or specifications without notice. If you are in any doubt as to the suitability of this product for your intended application please contact our technical team on 01329 844500 or email [email protected] and we will contact you.

Health and Safety

Please see (SDS) Safety Data sheet - This can be requested from our sales team T: 01329 844 500 or E: [email protected]

We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on tel 01329 844 500 or email [email protected]

Installation

All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 – Code of Practice for the Installation and Inspection of Fire Stopping.

Maintenance

It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.

Competency

Please refer to the ETA sheet for fields of application for this product. For further information on installation requirements please refer to the manufacturer of the services and the wall/floor specification to ensure the compatibility of this product, if in doubt please contact the technical team with services and wall/floor specification on: T: 01329 844 500 or E: [email protected]

Additional Notes

Mehhaaniline vastupidavus ja stabiilsus*)

Kandevõime Vaata ETA 11/0485 Lisa B ETAG 015 / September 2002

Jäikus Toimivust ei ole kindlaks määratud ETAG 015 / September 2002

Nõtkus tsüklilises katsetamises Toimivust ei ole kindlaks määratud ETAG 015 / September 2002

Tuleohutus

Tuletundlikkus

Nurgikud on valmistatud terasest (Euroclass A1) vastavalt EN 1350-1 ja EÜ otsus 96/603/EÜ, muudetud EÜ otsus 200/605/EÜ ETAG 015 / September 2002

Hügieen, tervis ja keskkond

Mõju õhu kvaliteedile Ohtlikud materjalid puuduvad **) ETAG 015 / September 2002

Kasutusohutus Ei ole asjakohane ETAG 015 / September 2002

Kaitse müra eest Ei ole asjakohane ETAG 015 / September 2002

Energiasäästlikkus ja soojapidavus Ei ole asjakohane ETAG 015 / September 2002

Kasutuskõlblikkusega seotud aspektid

Vastupidavus ja kasutuskõlblikkus

Nurgikute kasutatavust ja vastupidavust on hinnatud rahuldavalt, kui toodet kasutatakse puitkonstruktsioonides kasutades materjale,

mis on kirjeldatud Eurocode 5 ja määratud tingimustele mida kirjeldavad kasutusklass 1 ja 2. Nurgikuid võib ka kasutada välistingimustes puitkonstruktsioonidel, kasutusklass 3, kui kasutatakse Eurokoodeksi 5 kohast korrosioo- nikaitset, või kui kasutatakse roostevaba terast, mis on samade või paremate tugevusoma- dustega ning maksimaalne tugevus on tagatud. ETAG 015 / September 2002

Tuvastamine Vaata ETA 11/0485 Lisa A ETAG 015 / September 2002

*) Vaata käesoleva ETA leht 5

**) Vastavalt http://europa.eu.int-/comm/enterprise/construction/internal/dangsub/dangmain.htm ning lisaks spetsiifilistele klauslitele antud Euroopa

Tehnilises Tunnustuses mis puudutavad ohtlike aineid, võib olla ka teisi nõudeid, mida kohaldatakse toodetele, mis kuuluvad selle reguleerimisalasse (nt

ülevõetud Euroopa õigusaktid ning siseriiklikud õigusaktid, määrused ja administratiivsätted). Selleks, et vastata EL Ehitustoodete direktiivi sätetele, tuleb

neid nõudeid ka täita, seal kus ja millal neid kohaldatakse.

www.holzprof.ee

HOLZ PROF

Kinnitamise kuupäev: 01.03.2017

KOMPLEKSNE PUIDU TULEKAITSEVAHEND, EUROKLASS B-s1, d0, B(fl)-s1 ja K110 ,K210.

KAITSEB PUITU PÕLEMISE JA SÜTTIMISE EEST. TAGAB ILMASTIKUKINDLUST PUIDULE.

KASUTUSALA

Holz Profi kasutatakse eramute, tootmis-, ühiskondlike hoonete puitelementide (fassaadid, terrassid, katused jne)

tulekaitseks sise- ja välistingimustes. Euroklass B-s1, d0 (EN 13501-1), Euroklass B(fl)-s1 ja K110, K210 (EN 13501-

2). Nordtest Method NT FIRE 053 (ISO 5660), NT FIRE 054, NT Build 504 - katsed kasutamiseks sise- ja

välistingimustes. Puidukaitsevahend toimib nii põlemise kui süttimise vastu ning sobib leht- ja okaspuidu töötluseks

sise- ja välistingimustes.

NB! Toodet ei kasutata pindadel, mis on juba kaetud värnitsa, laki, värvi või muu hüdrofoobse ainega.

EELISED

Holz Prof on sügavimbuv ja seondub keemiliselt puiduga, tagades selle efektiivse ja pikaajalise kaitse. Toode muudab

puidu raskestipõlevaks ja -süttivaks ning suurendab töödeldud puidu tugevusnäitajaid. Holz Prof tagab topeltkaitset

puidu nii tule kui ka ilmastiku mõju eest. Toode säilitab puidu tekstuuri ega takista õhutsirkulatsiooni. Ei mõjuta puidu

liimimise ega hilisema värvimise võimalusi. Holz Prof on tule- ja plahvatuskindel, värvitu, ei sisalda lenduvaid aineid.

KASUTUSVIIS

Holz Prof kantakse mustusest, tolmust, puukoorest jm puhastatud pinnale. Töödeldava puidu niiskus ei tohi ületada

20% puidu massist. Hea ja ühtlase imbumiseks puitu reagendi (Holz Prof) temperatuur peab olema +15°C...+25°C.

Pinnale kantud kiht tuleb kuivatada õhutemperatuuril vahemikus +12°C...+40°C maksimaalse õhuniiskusega 75%.

Sellistel tingimustel kuivamisaeg on 1–3 ööpäeva, kuid võib olla rohkem sõltuvalt õhutemperatuurist ja -niiskusest,

puidutüübist ja viimistlusviisist. Toode on puiduga lõplikult seondunud 7 ööpäeva möödudes. Immutatud ja

kuivatatud pinda võib värvida või katta teiste dekoratiivvahenditega.

NB! Peale immutamist ei tohi puidu pinda mehaaniliselt töödelda. Mitte töödelda jäätunud puitu! Mitte segada teiste

vahenditega! Enne kasutamist hoolikalt segada! (Toote põhja tekkiv sade ei mõjuta toote kvaliteeti).

Immutatud Holz Prof'ga puitkonstruktsioonide paigaldusega seotud küsimuste korral (õhuvahed jne), palume

pöörduda tootja poole.

KULU

 Pintsli ja/või rulli abil kantakse puitmaterjali pinnale 2–3 kihti 40–60minutiliste intervallidega, normeeritud

summaarse kuluga 300 g/m2 (270 ml/m2) kohta. Immutussügavus peab olema 1,5–3,0 mm. Puitu peab töötlema

kõikidel külgedel.

 Vannis/vaakumis immutamisel on kulu samuti 300 g/m2 (270 ml/m2) kohta, mis tagab immutussügavuse

1,5–3,0 mm.

SÄILITAMINE

Holz Profi tuleb säilitada ja transportida hermeetiliselt suletud originaalpakendis ja toidukaupadest eraldi. Toote

säilitustemperatuur ei tohi olla alla -5°C. Säilimisaeg on 24 kuud.

KOOSTIS: raud (III) divesinikfosfaat, vesi ja lisaained.

OHUTUSNÕUDED

Hoida lukustatult ja lastele kättesaamatus kohas. Vältida silma, nahale või rõivastele sattumist. Silma või nahale

sattumise korral loputada veega. Halva enesetunde korral pöörduda arsti poole. Kasutada hästiventileeritavas kohas.

Kõrvaldada koos teiste olmejäätmetega.

Schäfer + Peters GmbH

DIN 976-1 A2 Stud bolts Produkt: DIN 976-1 A2 M 12X1000 Stud bolts

Material: A2

Item number: 0976212 1000

Alternative standard: formerly DIN 975

EAN/GTIN: 4043377123114

Weight per 100 pcs.: 72,50 kg

Packaging: 20 pcs.

Technical Data

Length (l): 1000 mm Diameter (d): 12 mm Tensile strength : 700 N/mm2

Application

Metal constructions, ceiling suspensions

Application Area

Metal construction, Timber construction

Powered by TCPDF (www.tcpdf.org)

Arve saaja Tallinn, Õismäe tee 150 korteriühistu Arve nr 1495

Kuupäev 12.03.2024 Maksetähtpäev 26.03.2024 Viivis 0.05% päevas

Rg-kood 80230352 OMA Fassaad OÜ

A. H. Tammsaare tee 47 Kristiine linnaosa, Tallinn

11316 Harju maakond

Rg-kood 11357142 KMKR nr EE101129165

Hanke nimetus: KELDRIRUUMIDE VARJUMISRUUMIDEKS KOHANDAMINE Objekti aadress: Õismäe tee 150, Tallinn

Kirjeldus Kogus Ühik Hind Summa km-ta

TEHTUD TÖÖDE AKT 1 1 32 219,76 32 219,76

Summa km-ta 22% 32 219,76

Käibemaks 22% 7 088,35

Arve kokku (EUR) 39 308,11

Võttis vastu:

E-post [email protected] Koduleht www.omafassaad.ee

Swedbank IBAN EE212200221058796514 SWIFT HABAEE2X

LHV Pank IBAN EE757700771001516767 SWIFT LHVBEE22

Arve saaja Tallinn, Õismäe tee 150 korteriühistu Arve nr 1510

Kuupäev 23.04.2024 Maksetähtpäev 07.05.2024 Viivis 0.05% päevas

Rg-kood 80230352 OMA Fassaad OÜ

A. H. Tammsaare tee 47 Kristiine linnaosa, Tallinn

11316 Harju maakond

Rg-kood 11357142 KMKR nr EE101129165

Hanke nimetus: KELDRIRUUMIDE VARJUMISRUUMIDEKS KOHANDAMINE Objekti aadress: Õismäe tee 150, Tallinn

Kirjeldus Kogus Ühik Hind Summa km-ta

TEHTUD TÖÖDE AKT 2 1 24 905,74 24 905,74

Ümardus 1 tk 0,01 0,01

Summa km-ta 22% 24 905,75

Käibemaks 22% 5 479,26

Arve kokku (EUR) 30 385,01

Võttis vastu:

E-post [email protected] Koduleht www.omafassaad.ee

Swedbank IBAN EE212200221058796514 SWIFT HABAEE2X

LHV Pank IBAN EE757700771001516767 SWIFT LHVBEE22

Arve saaja Tallinn, Õismäe tee 150 korteriühistu Arve nr 1525

Kuupäev 31.05.2024 Maksetähtpäev 14.06.2024 Viivis 0.05% päevas

Rg-kood 80230352 OMA Fassaad OÜ

A. H. Tammsaare tee 47 Kristiine linnaosa, Tallinn

11316 Harju maakond

Rg-kood 11357142 KMKR nr EE101129165

Hanke nimetus: KELDRIRUUMIDE VARJUMISRUUMIDEKS KOHANDAMINE Objekti aadress: Õismäe tee 150, Tallinn

Kirjeldus Kogus Ühik Hind Summa km-ta

TEHTUD TÖÖDE AKT 3 1 32 943,73 32 943,73

Summa km-ta 22% 32 943,73

Käibemaks 22% 7 247,62

Arve kokku (EUR) 40 191,35

Võttis vastu:

E-post [email protected] Koduleht www.omafassaad.ee

Swedbank IBAN EE212200221058796514 SWIFT HABAEE2X

LHV Pank IBAN EE757700771001516767 SWIFT LHVBEE22
